How to Place Foundation Rebar Without Rework

August 14, 2026

A foundation inspection can stop a pour over details that are cheap to fix early and expensive to fix once concrete is on the truck. Knowing how to place foundation rebar means more than dropping steel into a trench. The bars need to match the approved plans, sit at the right elevation, maintain concrete cover, and stay put when the crew walks the mat and the concrete starts flowing.

For North Texas contractors, the ground conditions, structural design, and local inspection requirements can vary by job. The plans and engineer's details always control. But the field process below will help your crew build a clean, inspection-ready reinforcing package for footings, grade beams, pier caps, and slab-on-grade work.

Start With the Plans, Not the Steel

Before material hits the jobsite, confirm the reinforcing schedule and placement drawings. Check bar size, bar marks, quantities, spacing, lap locations, hooks, dowels, and any notes for corners, intersections, thickened slab edges, or point loads. A #4 bar is not a substitute for a #5 just because it is available, and changing a lap length in the field can create a real structural issue.

Walk the excavation or prepared subgrade against the layout. Make sure footing widths and depths are correct, grade beam trenches are clean, and pier locations line up with the building grid. Rebar cannot correct a footing that is too narrow, too shallow, or full of loose soil and standing water.

If a detail is unclear, stop and get direction from the engineer, general contractor, or responsible design professional before tying steel. A quick call before placement is better than cutting out installed rebar or delaying a scheduled pour.

Build a Clean Base for the Rebar

Foundation steel needs a stable, clean place to sit. Remove loose dirt, debris, mud, and broken concrete from footings and trenches. Where the foundation includes a slab, get the base material compacted and the poly installed as specified before setting chairs and bar supports.

Do not lay rebar directly on soil unless the approved detail specifically allows it. Contact with earth creates a cover problem and exposes the steel to moisture. It also makes elevation hard to control. In most foundation work, the reinforcing needs to be suspended in the concrete, not buried at the bottom of the excavation.

Set form boards, stakes, and string lines first when the design calls for formed footings or slab edges. They give the crew a reliable reference for bar alignment and cover. On trench footings, establish the centerline and check dimensions often, especially where grade beams turn or tie into wider pads.

Set the Right Concrete Cover

Concrete cover is the distance between the outside of the rebar and the finished concrete surface. It protects reinforcing steel from corrosion, heat, and exposure. The required cover depends on whether concrete is cast against earth, formed, exposed to weather, or placed inside a slab. Your structural drawings and applicable code requirements determine the exact dimension.

The practical rule is simple: do not guess. Use the proper bar supports to hold the steel off the ground and away from forms. Concrete dobies, plastic chairs, continuous supports, and sidewall spacers all have a place, depending on the application and exposure conditions.

For a footing cage, support the bottom bars so they maintain the specified clearance from the excavation. Keep longitudinal bars centered across the footing width unless the detail shows otherwise. In a slab mat, use chairs with enough height and spacing to hold the mat at the design elevation without sinking into the base or punching through the vapor barrier.

Watch the sides as closely as the bottom. Bars shoved against a form board or trench wall can fail cover even when the elevation looks right. Use spacers and make adjustments before the inspector arrives.

Place Footing and Grade Beam Rebar in Sequence

A good sequence keeps the job moving and prevents crews from climbing over loose bars later. Start with the continuous bottom bars in footings or grade beams. Set them on supports, align them to the layout, and tie enough intersections to keep the run straight. Then install stirrups, rings, or transverse ties where shown, followed by top bars and any additional bars at pads, columns, openings, or concentrated loads.

Fabricated corner bars and bent bars are worth using where the plans call for them. They maintain continuity around turns and reduce field bending. Do not make sharp field bends in high-strength reinforcement unless the approved detail and proper bending practice allow it. A bar bent incorrectly can crack, lose its intended geometry, or create the wrong development condition.

At grade beam intersections, avoid building a pile of steel in one spot without checking the detail. The bars must pass, lap, hook, or terminate as designed while still leaving room for concrete placement and consolidation. Congested intersections are a common source of honeycombing if the crew cannot get concrete around the steel.

Handle Laps, Splices, and Dowels Exactly as Detailed

Rebar lengths are limited, so most foundations include lap splices. The lap length is not a universal number. It depends on bar size, steel grade, concrete strength, coating, confinement, and the engineer's design. Follow the lap length shown on the drawings and measure it in the field. Eyeballing a splice is how short laps happen.

Keep laps in the locations shown. Many designs stagger splices so they do not all occur at the same section. If the plan calls for mechanical couplers, use the specified coupler and installation method. Do not replace couplers with a lap splice without approval.

Set vertical dowels carefully for walls, columns, masonry, or future pours. Check their spacing, projection, alignment, and hook orientation before concrete placement. A dowel that leans, shifts, or ends up too short can create a costly correction once the foundation has cured. Tie dowels to the footing cage or a stable template so they cannot move during the pour.

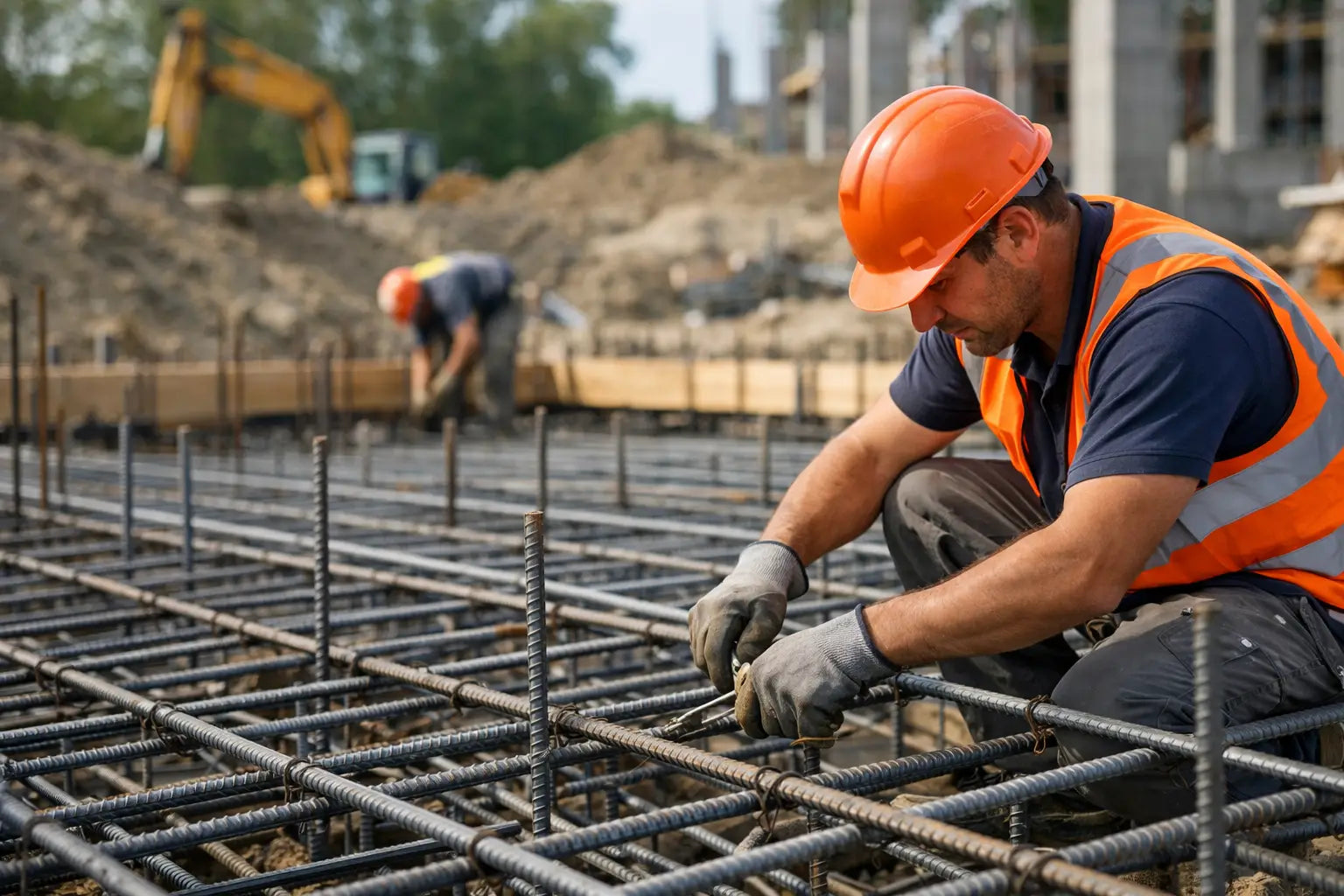

Tie the Steel So It Stays Where You Put It

Tie wire does not provide structural strength to the finished concrete. Its job is to hold the reinforcing assembly in position until the concrete takes over. That still matters. A loose mat can spread, roll, or sink under foot traffic and hose pressure.

Tie intersections securely, especially at perimeter bars, corners, splices, supports, and vertical dowels. Not every intersection always needs the same tie pattern, but the completed assembly must be rigid enough to keep its spacing and elevation. Use enough ties to prevent movement, not just enough to make the steel look connected.

Keep wire tails turned down or inward where practical. Sharp tails sticking toward the finished surface can interfere with cover or create a safety snag for the crew. After tying, walk the cage and push on critical areas. If a section shifts easily, add ties or supports before the pour.

Check Slab Reinforcement Before the Inspection

For slab-on-grade work, the biggest placement mistake is usually elevation. Welded wire reinforcement or rebar that starts on chairs can end up on the bottom if the crew walks it down, drags hoses across it, or places concrete too aggressively. If the plans require reinforcement at a specific height in the slab, maintain it there with properly spaced supports and controlled placement.

Check that vapor barrier, expansion material, dowels, thickened edges, control-joint details, and penetrations are all coordinated before the steel is locked in. Plumbing sleeves and electrical penetrations are easier to correct before the inspection than after the rebar mat is tied.

Use this field check before calling for inspection:

• Bar sizes, spacing, quantities, bends, and bar marks match the approved drawings.
• Required concrete cover is maintained at the bottom, sides, top, and formed edges.
• Chairs, dobies, and spacers support the steel at the required elevation.
• Lap lengths, splice locations, hooks, and dowels match the structural details.
• Steel is tied securely, trenches are clean, and the assembly has not shifted.

Keep Rebar in Position During the Pour

Passing inspection is not the finish line. Assign someone to watch the reinforcing while concrete is placed. That person should check dowels, top steel, chairs, and slab mats as the pump hose or chute moves across the work. Make corrections immediately if bars get kicked down, pulled sideways, or exposed too close to a form.

Place concrete in a controlled sequence. Avoid dumping a large load in one area and trying to rake it across the entire footing or slab. That can drag rebar out of position and overload supports. Vibrate where required, but do not use the vibrator to push steel or force concrete through a congested cage.

The best foundation rebar placement is planned before delivery, built to the drawings, and checked again before the truck arrives. Rebar Concrete Products can help contractors line up rebar, fabricated pieces, supports, tie wire, and the jobsite materials needed to keep the pour on schedule. Get the steel right while it is still visible - concrete does not give you a second chance.
