Retaining Wall Reinforcement Example for Crews
A retaining wall reinforcement example is useful when the plans hit the jobsite and the crew needs to turn a structural detail into the right rebar, supports, dowels, and delivery schedule. Retaining walls are not just a vertical concrete pour. They carry lateral soil pressure, manage water, transfer load into a footing, and often sit beside slabs, drives, structures, or property lines where mistakes get expensive fast.
For a contractor, the goal is simple: read the engineered design correctly, get the steel fabricated to match, and keep the placement clean before concrete arrives. The details below show how to think through a typical cast-in-place reinforced concrete retaining wall. They are not a substitute for stamped plans. Bar size, spacing, development length, footing dimensions, and drainage requirements must follow the engineer of record and local requirements.
Start With the Wall Type and Soil Conditions
Before ordering steel, identify what kind of wall the drawings call for. A short landscape wall and a structural cantilever wall may both be called retaining walls, but the reinforcement requirements can be completely different.
A common commercial or residential site condition is a cast-in-place cantilever retaining wall. It has a vertical stem connected to a continuous footing. The footing typically includes a heel extending beneath the retained soil and a toe extending in front of the wall. The wall and footing work together to resist sliding, overturning, and bearing pressure.
Wall height is only one part of the design. Soil type, slope above the wall, groundwater, surcharge loads from vehicles or buildings, adjacent foundations, and backfill compaction all affect the reinforcing schedule. In North Texas, expansive clay and changing moisture conditions can make drainage and proper subgrade preparation just as critical as the rebar itself.
Do not use a standard bar layout because it worked on the last job. A wall retaining level, well-drained fill is not the same as a wall holding saturated soil below a driveway.
A Retaining Wall Reinforcement Example for a Cantilever Wall
Picture an engineered wall with approximately 5 feet of exposed height, a cast-in-place stem, and a continuous reinforced footing. The plans may show vertical bars in the stem, horizontal bars running the length of the wall, and separate top and bottom mats in portions of the footing.
The vertical stem bars are the primary bars that carry bending forces from lateral earth pressure. They extend from the footing up into the wall stem. Depending on the structural design, these bars may be hooked or developed into the footing, or they may tie into dowels projecting from the footing pour. The engineer determines the bar size, spacing, hook geometry, and required embedment.
Horizontal stem bars help control cracking, hold the vertical bars in position, and distribute forces along the wall. They are commonly placed at specified spacing up the stem. A placement drawing should clearly show whether the bars run continuous, lap at designated locations, or terminate at expansion joints and wall ends.
At the footing, reinforcement is often arranged based on the heel and toe behavior. The heel may require steel near the top where retained soil loads create tension. The toe may require steel near the bottom. Continuous longitudinal bars run along the wall, while transverse bars cross the footing width. The exact location matters. A bar placed on the wrong side of a footing is not doing the job the engineer designed it to do.
The field takeaway is straightforward: do not treat the footing as a simple slab. Keep the top and bottom steel separated with proper supports, maintain the specified cover, and verify each bar mat before the pour.
What a Placement Sequence Can Look Like
A practical crew sequence usually starts with a checked excavation and compacted bearing surface. The crew installs the footing steel first, including continuous bars, transverse bars, corner bars, and any vertical dowels required for the wall stem. Chairs, dobies, or approved supports keep steel at the elevation shown on the plans.

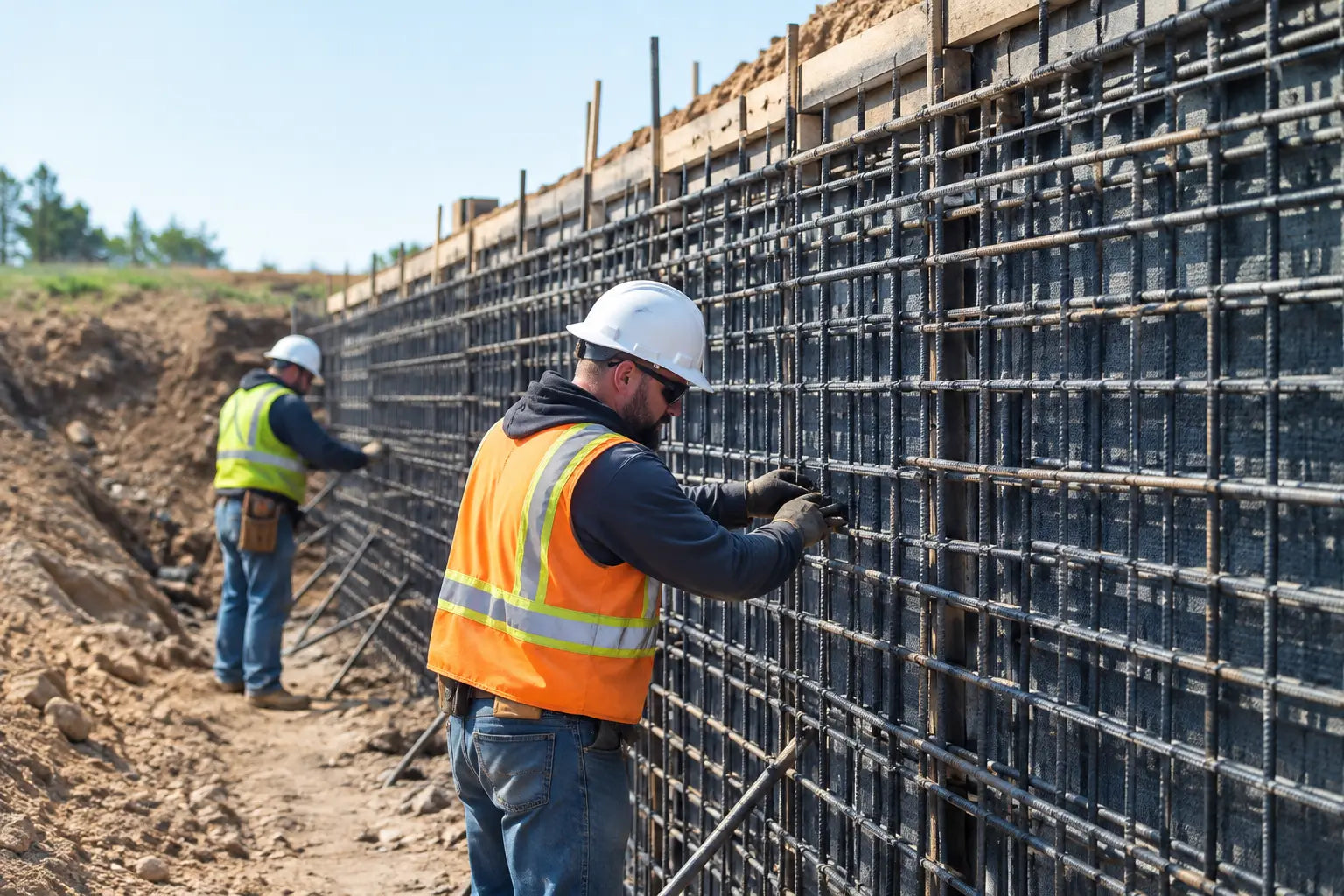

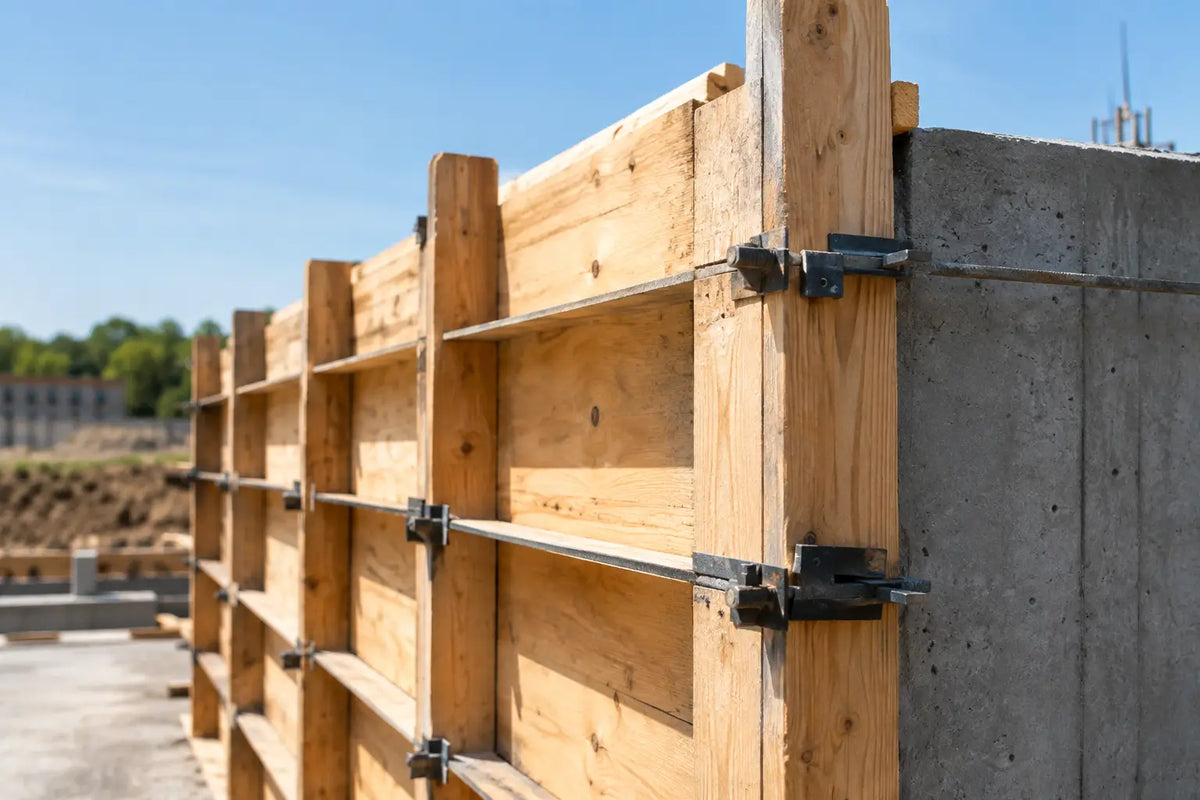

After the footing is poured and reaches the required condition for the next operation, the crew sets the stem forms. Vertical bars are tied to the dowels or continuous footing steel, then horizontal bars are installed at the plan spacing. The cage needs enough ties to hold shape during concrete placement and vibration, but it should not be tied so carelessly that bar spacing moves when the crew works around it.
At wall returns, corners, steps, and elevation changes, standard straight bar runs are rarely enough. This is where fabricated corner bars, L-bars, U-bars, stirrups, and bent bars can save time and reduce field mistakes. A clean fabrication package also avoids the common problem of cutting random stock lengths on site and hoping the laps work out.
Reinforcement Details That Commonly Cause Problems
The most costly retaining wall issues are often basic placement failures, not exotic engineering problems. Concrete cover is one example. Steel too close to soil, forms, or the bottom of an excavation is more exposed to corrosion and may not meet the design requirements. Steel that sags during the pour can also lose the intended structural position.
Lap splices need the correct length and location. Do not assume every lap can happen wherever two bars meet. Plans may prohibit laps in high-stress areas or require staggered splices so all bars are not interrupted at the same location. If a fabricated bar arrives short, do not make a field decision without checking the detail.
Openings and penetrations deserve the same attention. Sleeves for drainage, utilities, or wall penetrations can interrupt reinforcement and require added steel around the opening. Coordinate these items before the cage is tied. Cutting bars after inspection because a pipe was overlooked is a bad way to start a wall pour.
End conditions matter too. Walls that return into another wall, terminate at a column, step down a grade, or connect to a slab may require specific dowels and development. Ask for the placement drawings and bar list early, especially when the wall has more than one elevation or several corners.
Drainage Is Part of Wall Performance
Rebar carries structural forces. It does not solve hydrostatic pressure.
Water trapped behind a retaining wall adds load that the original soil-only design may not be intended to carry. A complete wall system commonly includes free-draining backfill, filter fabric where specified, perforated drain pipe, a positive discharge point, and weep holes when shown on the plans. The detail depends on the site and wall design, but the principle does not change: keep water from building pressure behind the stem.
Do not let drainage work become an afterthought once the forms come down. Confirm pipe elevation, outlet locations, cleanout needs, backfill material, and compaction requirements before equipment starts pushing dirt against the wall. Heavy compaction equipment placed too close to a young wall can create trouble even when the reinforcement is correct.
Ordering the Steel Without Slowing the Crew
A good rebar order starts with more than a total tonnage number. The supplier needs the bar marks, sizes, lengths, bends, quantities, lap requirements, and delivery sequence. If the job has a footing pour followed by a separate stem pour, splitting the delivery can reduce site congestion and make placement easier.
For a typical retaining wall package, crews may need straight rebar, fabricated L-bars or corner bars, dowels, tie wire, rebar supports, stakes, poly, expansion material, and layout or forming materials. Ordering these items together cuts down on last-minute runs when the crew is already set up.
Rebar Concrete Products can help contractors turn plans into a workable supply package with takeoffs, custom fabrication, placement drawings, and local delivery on qualifying orders. That matters when the wall has repeated corners, stepped sections, or a tight pour schedule. The right fabricated pieces show up ready to place instead of becoming a cutting and bending problem in the field.
Check Before Concrete Shows Up
Before release, walk the wall with the plans in hand. Verify bar size and spacing, footing mat elevation, stem bar alignment, laps, hooks, corner reinforcement, cover, dowels, sleeves, and drainage penetrations. Check that forms are braced and that the steel cage will stay in position under concrete pressure.
Also look at access. If the pump hose, chute, vibrator, or finishing crew cannot move through the work area without stepping on the cage, fix that before the truck arrives. A sound retaining wall detail can still be compromised by a rushed placement.
A retaining wall is one place where the cheapest shortcut can follow the project for years. Get the engineered detail, the fabricated steel, the drainage plan, and the jobsite sequence lined up early. Then your crew can pour with confidence instead of making structural decisions with a truck waiting at the gate.
