Bar Supports for Footings: What to Use
When footing steel ends up buried in the mud or floating too high in the pour, the problem usually starts with the support under it. Bar supports for footings are a small item, but they directly affect cover, placement, inspection, and the finished performance of the concrete. If the support is wrong for the soil, spacing, or bar layout, crews lose time fixing steel in the trench and risk failed inspections or weak placement.
Why bar supports for footings matter
Footings are not forgiving. The rebar needs to stay where the plans call for it, with consistent clearance from the soil and enough stability to hold position during the pour. That means the support has one job - keep the steel at the right elevation and keep it there.
On a clean, level setup, almost any support can look fine before concrete hits the trench. The real test comes when the crew is tying bars, stepping around the steel, and placing mud. If supports tip, sink, or break, the steel moves. Once that happens, crews are either stopping to re-set bars or pouring with bad cover. Neither option helps the schedule.
That is why support selection is not just a material detail. It is a field decision tied to soil conditions, bar size, footing width, and how the pour will actually happen on site.
What a footing bar support needs to do
A good footing support needs to carry the weight of the reinforcement without punching into the ground or shifting when the crew works around it. It also needs to match the required concrete cover shown on the plans. That sounds basic, but footing conditions vary a lot from one job to the next.
In a residential trench footing, crews often need a support that sets quickly, stays stable on compacted soil, and handles straightforward bar runs. In larger commercial work, the support may need to carry heavier mats or multiple bar layers with tighter tolerances. The right product depends on the load and the bearing surface.
The main goal is simple: hold the rebar in position from setup through placement. If a support cannot do that consistently, it is the wrong support, even if it is the cheapest piece on the pallet.

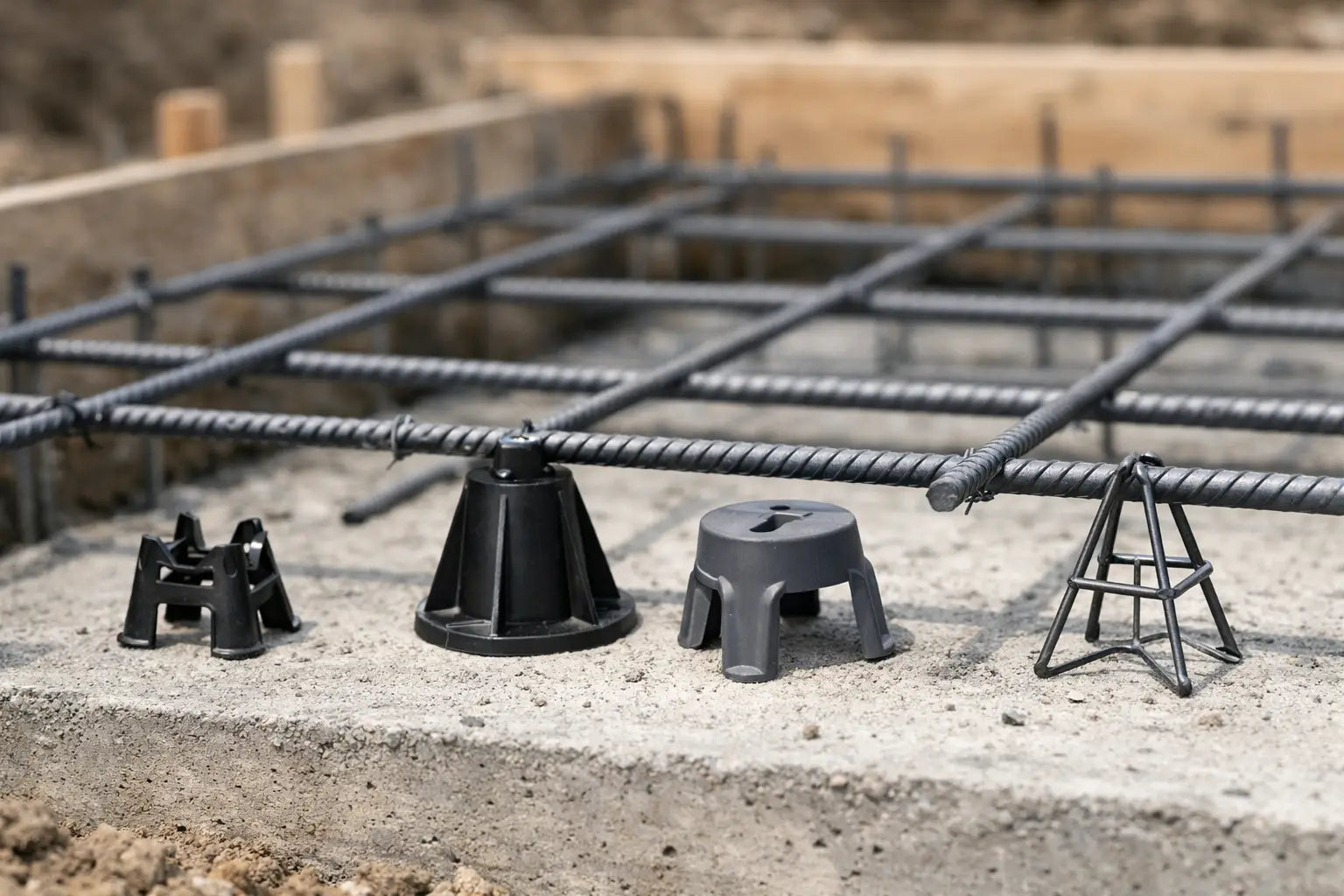

Common types of supports used in footing work
Contractors generally choose footing supports based on the base condition and the amount of steel being carried. Precast concrete dobies are common because they provide solid bearing and hold up well in footing trenches. They are especially useful where the ground is uneven or soft enough that lighter supports may settle.
Plastic bar supports are also used in footing applications, especially where crews want fast placement, uniform height, and a clean, lightweight option. On the right surface, they can work well and save time. But not every plastic support belongs in every footing. If the trench bottom is rough, muddy, or unstable, some plastic styles can rock or sink.
Wire supports may be used in certain applications, but for footings in direct contact with earth, the better choice is usually a support designed for that specific condition. The support needs enough footprint and strength for the job, not just enough height.
Concrete dobies vs. plastic supports
This is where job conditions matter most. Concrete dobies are a strong choice when you need solid bearing on soil and dependable support under heavier steel. They are simple, tough, and familiar to most crews. If the footing trench is less than perfect, that extra stability matters.
Plastic supports have advantages too. They are fast to handle, uniform in size, and often easier to stock across multiple cover requirements. On a prepared base, they can be efficient and cost-effective. But there is a trade-off. Some plastic styles do better on firm, even surfaces than on loose trench bottoms. If the ground is soft, the support may need a wider base or a different material altogether.
The best choice is not about picking one category every time. It is about matching the support to the footing condition, the steel load, and the pace of the crew. A support that works great on one slab or formed section may not be the right call in an earth-cut footing.
Getting the right cover in footing rebar
Concrete cover is the whole point. If the steel sits too low, it can end up too close to the soil. If it rides too high, you lose the placement the engineer designed. Either way, the footing is not built as intended.
That is why support height needs to be selected with the same attention as the bar size. Crews should not be guessing in the trench or stacking scraps under the steel to make things work. Use the correct support height for the specified cover and keep it consistent across the run.
Spacing matters too. Even the right support can fail if it is too far apart. Heavier bars, bundled reinforcement, and intersections need enough support points to prevent sagging between chairs or dobies. If the steel dips between supports, your cover is already off before the pour starts.
What goes wrong when the wrong support is used
Most footing steel problems are avoidable. A support that is too narrow for the trench bottom can sink. A support that is too light for the steel can collapse or roll. A support placed too far apart can let bars sag. Once the pour starts, those small issues turn into bigger ones fast.
Crews then have to stop and re-lift bars with hooks or by hand, which slows production and creates more movement in the cage. Inspectors may flag inconsistent cover, especially where bars are touching earth or sitting visibly low. On larger work, those corrections cost more than choosing the right support in the first place.
The other problem is ordering without thinking through the actual setup. A support might look right by spec sheet but still be wrong for a muddy trench, a wide footing, or a heavier fabricated assembly. Product selection needs to reflect field reality, not just a catalog description.
How contractors should choose bar supports for footings
Start with the plans and required cover. Then look at the trench condition, bar size, spacing, and whether the steel is a simple run or a heavier assembled cage. That will narrow the support type pretty quickly.
If the footing bears directly on soil and the trench bottom is not perfectly firm, concrete dobies are often the safer call. If the base is prepared and the load is lighter, a plastic support designed for footing use may be a good fit. For heavier commercial layouts, support spacing and load capacity should be checked just as carefully as the support height.
It also helps to think about how the material will be installed. Some jobs need speed and easy handling. Others need more bearing strength because crews will be working around dense steel in deep trenches. There is no value in buying a cheaper support if it creates labor problems during placement.
Supply matters as much as product choice
Even experienced crews lose time when supports are missing, shorted, or mismatched to the job. Footing work moves fast, and nobody wants to send a truck across town for a small accessory that should have been right the first time.
That is why contractors usually want one supplier that can cover the whole package - rebar, fabricated pieces, support products, tie wire, poly, stakes, and other concrete jobsite materials. It cuts down on confusion, reduces delays, and makes ordering easier when plans change or quantities move.
A full-service supplier should be able to help match bar supports for footings to the actual scope, not just sell whatever happens to be on the shelf. That is where practical product knowledge saves money. If a job calls for fabricated steel, takeoffs, placement drawings, and fast local delivery, the support products need to be part of that same process, not an afterthought.
In North Texas, footing conditions can vary from clean prepared sites to rougher trench work that demands a more stable support choice. Rebar Concrete Products works with contractors who need material that fits the job, turns fast, and shows up when it is supposed to. That is the standard. The right support keeps the steel where it belongs, keeps the pour moving, and keeps small material decisions from becoming expensive field problems.
