How Much Overlap for Rebar?

June 13, 2026

If your crew is asking how much overlap for rebar, the short answer is this: there is no one-size-fits-all lap length. The right overlap depends on bar size, concrete strength, bar spacing, cover, location in the pour, and what the plans and code require. Guessing is how you end up short on steel, held up at inspection, or fixing a placement after the pump is already booked.

How much overlap for rebar really depends on

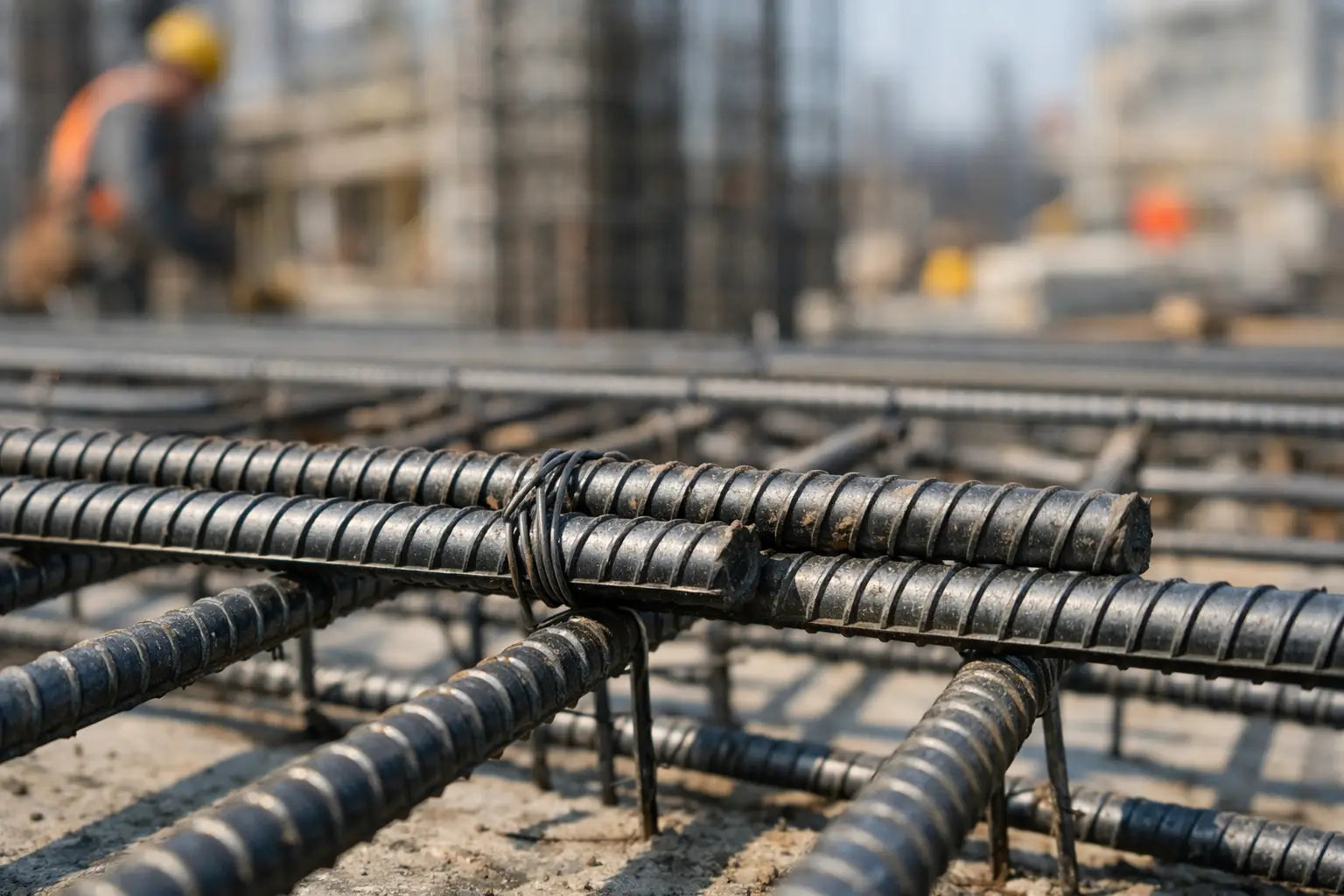

On most jobs, what people call overlap is the lap splice length. That is the length where two bars are placed side by side so the load can transfer from one bar to the other through the surrounding concrete. The overlap has to be long enough for the steel to develop its strength.

That matters because rebar does not work by itself. The steel and concrete work together. If the lap is too short, the bond can fail before the bar does. If the lap is longer than needed, you are spending more on material and dealing with extra congestion in the cage or mat.

For contractors, that means the real answer starts with the plans. Structural drawings and schedules should tell you splice locations, bar sizes, and often the required lap length. If the engineer has called out a lap, that is the number that rules the job. If the plans are silent, then the governing code and design assumptions take over.

Common field ranges for rebar overlap

In the field, crews often talk in rough rules of thumb like 40 bar diameters or 48 bar diameters. You will hear that because many straight tension lap splices land somewhere in that range under common conditions. But that is still only a starting point, not a blanket answer.

For example, a #4 bar is 1/2 inch in diameter. At 40 bar diameters, that lap would be 20 inches. A #5 bar at 40 diameters would be 25 inches. A #6 bar would be 30 inches. If conditions require 48 diameters instead, those lengths jump fast.

That is why asking only by bar size is not enough. Two jobs using the same #5 bar can end up with different lap requirements depending on placement and concrete conditions.

What changes the required lap length

Bar size

Larger bars generally require longer lap splices. As diameter increases, the required development length usually increases too. That can create real congestion at beam intersections, wall mats, grade beams, and heavily reinforced footings.

Tension versus compression

Bars in tension usually need more lap than bars in compression. Tension splices are less forgiving because the force is trying to pull the bar through the concrete bond zone. Compression splices often come out shorter, but they still need to match the design.

Top bars

Top-cast bars can require longer development and splice lengths. When concrete is placed, bleed water and settlement under upper bars can reduce bond quality. If a bar has more than 12 inches of fresh concrete below it, that top-bar factor may apply.

Concrete strength

Higher compressive strength concrete can improve bond and reduce required splice length in some cases. Lower-strength concrete can push lap lengths longer. That is one reason a slab-on-grade detail and an elevated deck detail may not be treated the same way.

Coated versus uncoated rebar

Epoxy-coated bars can require longer lap lengths because the coating reduces bond compared with black bar. If the design uses coated rebar for corrosion protection, do not assume black-bar lap numbers still work.

Cover and spacing

Good concrete cover and adequate spacing help bond. Tight spacing and poor cover can increase required lengths. In real job conditions, this is where field placement matters. If bars get crowded, shifted, or stacked in ways that were not intended, you may create a problem even if the raw lap length looked right on paper.

Where crews get in trouble

The biggest mistake is using a shop rule everywhere. A crew gets used to tying #4s at 24 inches or #5s at 30 inches, then carries that over to every footing, wall, and slab. That works until the inspector asks for the detail, or the engineer notes a longer tension splice.

Another problem is lapping bars in the wrong location. Even when the lap length is technically right, plans may limit where splices can occur. High-stress zones in beams, columns, and other structural members are not where you want unplanned field splices.

Cutting bars short and trying to make it work in the field is another expensive habit. A few inches missing on one stick turns into delays, extra dowels, couplers, or field fixes across the whole pour.

How to check how much overlap for rebar on your job

Start with the structural drawings. Look for lap splice notes, typical details, schedules, and general reinforcement notes. Many engineers give direct splice lengths by bar size, and that is the cleanest answer.

If the plans do not spell it out, check the governing code and design basis. For most building work, that usually means ACI-based requirements interpreted by the engineer of record. On DOT or specialty work, different standards may apply. The point is simple: use the standard tied to the project, not whatever was used on the last job.

Then look at the actual field conditions. Confirm bar size, grade, coating, concrete strength, spacing, and whether the bars are top bars or tension bars. If one of those assumptions changes, the lap may change with it.

If there is any mismatch between the plans and what is in the field, stop and get direction before the pour. That is faster than tearing out work after inspection.

Typical examples contractors deal with

In residential slab and footing work, many crews are working with #3, #4, and #5 bars. Lap lengths often fall into familiar ranges, but even in straightforward residential work, grade beams, stem walls, thickened edges, and dowel connections can all have their own details. The fact that it is a house does not mean the splice can be guessed.

In commercial foundations and flatwork, steel congestion goes up fast. More bars, tighter spacing, and heavier mats make lap placement harder. That is where preplanning matters. If the fab list, takeoff, and placement drawings are coordinated correctly, your crew is not trying to solve splice conflicts with cutters and tie wire in the mud.

Vertical work brings another issue. Wall and column dowels need enough projection for the required lap, and that has to be set before the first pour. If dowels are left short, there is no cheap fix later.

Lap splices versus mechanical couplers

Sometimes the best answer is not a longer lap. On heavily reinforced jobs, mechanical couplers can solve congestion, reduce steel buildup, and help in tight splice zones. They also make sense where splice locations are restricted or where bar continuity is critical.

That said, couplers add material cost and require the right bar prep and coordination. For many standard residential and light commercial pours, a properly detailed lap splice is still the simplest and most economical option. It depends on access, schedule, density of steel, and what the engineer allows.

Why supply and fabrication matter

Lap splice issues often start before the truck ever leaves the yard. Wrong lengths, missing bends, unclear takeoffs, and unmarked bundles slow the whole job down. If bars are fabricated correctly and staged right, your crew can place faster and avoid making field decisions that should have been settled during planning.

That is where a full-service supplier helps. Getting the right lengths, fabricated pieces, takeoff support, and quick turnaround keeps rebar overlap from becoming a jobsite argument. For North Texas contractors, that is the difference between keeping a pour on schedule and burning a day over missing steel.

The practical answer

So, how much overlap for rebar? In many everyday cases, crews may see laps around 40 to 48 bar diameters, but that is not the final answer you should build from. The real number comes from the plans, the code, and the actual conditions of the pour.

If you want to stay out of trouble, do three things every time: verify the detail, confirm the bar and concrete conditions, and make sure the steel package fits the job before placement starts. That is the kind of mistake prevention that protects schedule, inspection, and margin.

When the splice length is not clear, get it answered before concrete shows up. Steel is cheap compared with rework, and a clean rebar package keeps the whole project moving.
