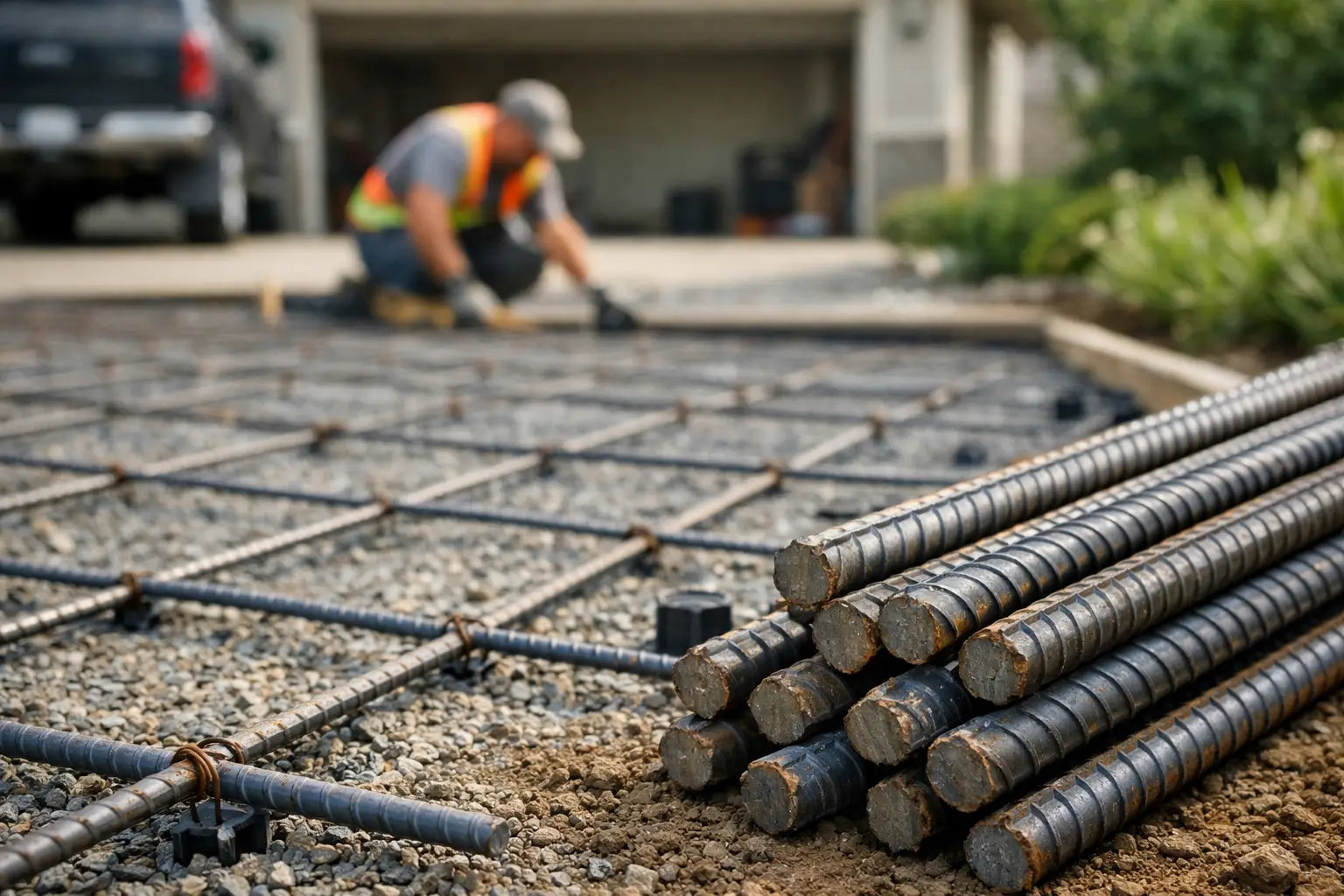

What Rebar Size Does Your Driveway Need?
A driveway slab can look simple on a plan, but it takes real abuse: loaded pickups, delivery trucks, turning tires, heat, rain, and soil movement. So when someone asks what rebar size driveway work requires, the honest answer is not one bar size for every pour. The right reinforcement depends on slab thickness, subgrade, traffic, joint layout, and whether the plans or local requirements call for a specific schedule.
For many residential driveways, #3 or #4 rebar is the practical starting point. A standard passenger-vehicle driveway on stable, well-prepared base may use #3 bar on a grid. Heavier residential traffic, questionable soil, thicker slabs, and driveway approaches often push the job toward #4 bar. But rebar is not a substitute for proper excavation, compacted base, correct concrete thickness, and well-placed control joints.
What Rebar Size for a Driveway Slab?
#3 rebar is 3/8 inch diameter. #4 rebar is 1/2 inch diameter. That half-inch bar may not sound much larger, but it carries more steel area and is the more common choice where the slab needs added strength and crack control.
For a typical 4-inch residential driveway carrying cars and light pickups, #3 rebar at roughly 18 to 24 inches on center each way is common when reinforcement is specified. For a 5- or 6-inch driveway, frequent full-size truck traffic, heavy SUVs, trailers, or a driveway that doubles as a work area, #4 rebar is usually the better call. Spacing commonly falls in the 18- to 24-inch range, though the project plans should control.
A few examples put the decision in plain terms. A short driveway serving one house with normal passenger traffic is often a #3-bar job if the base is solid. A long driveway where concrete trucks, service trucks, trailers, or work vehicles will regularly travel deserves a thicker slab and often #4 reinforcement. A commercial entrance, fire lane, loading area, or anything with repeated heavy axle loads needs an engineered design - do not size the steel by rule of thumb.
The biggest mistake is assuming bigger rebar fixes an undersized slab. It does not. A 4-inch slab placed over soft, wet, or poorly compacted material can still crack, settle, and fail at the edges no matter how much steel is inside it.
Thickness, Base, and Soil Set the Real Requirements
Rebar helps hold a cracked slab together and improves load transfer across small cracks. It does not prevent concrete from cracking. Concrete shrinks as it cures, moves with temperature changes, and reacts to subgrade movement. The goal is to manage that movement instead of pretending it will not happen.
Start with slab thickness. Four inches is common for passenger vehicles, assuming a properly prepared base. Five inches gives more margin for pickups and regular heavier use. Six inches or more may be appropriate for heavier vehicles, poor subgrade conditions, or sections with repeated concentrated loads. Garage approaches and street connections are often treated more carefully because vehicle loads and turning forces are harder on those areas.
Then look below the concrete. In North Texas, expansive clay soils can create trouble when moisture changes. A clean, compacted granular base helps provide uniform support and drainage. The base thickness depends on site conditions and design, but the key is consistency. A thin spot, loose fill, or muddy area under the slab is an invitation for cracking and settlement.
If the driveway crosses fill, slopes toward a garage, sits near drainage swales, or has known soil movement, get the site evaluated before ordering steel. The cost of adjusting the design before the pour is far less than tearing out failed concrete later.
Rebar Spacing and Placement Matter as Much as Bar Size
Correct bar size installed wrong is not correct reinforcement. Rebar needs to sit in the slab, not on the dirt where it provides limited value and can be exposed to moisture. For most driveway slabs, the steel should be supported in the lower-to-middle portion of the concrete section, generally around the middle third of the slab unless the plans specify otherwise.
Use proper rebar chairs, dobies, or other approved supports to hold the grid at elevation. Pulling steel up with hooks while concrete is being placed is inconsistent and usually leaves parts of the mat too low. Support it before the truck arrives and keep it there.
Tie intersections with tie wire so the grid stays in place during placement. Lap splices also matter. Rebar must overlap enough to transfer force from one bar to the next. A common field rule is around 40 bar diameters for a tension lap, but the required lap can vary by bar size, concrete strength, coating, and design conditions. Follow the drawings or ask for the correct detail rather than guessing.
Keep steel back from slab edges. Concrete needs adequate cover around the bar to protect it from corrosion and to keep edges from breaking out. The exact cover should follow the applicable plans and requirements, especially at exposed edges, driveway approaches, and any slab subject to moisture.
Do Not Skip Joints Because You Added Rebar
Rebar and control joints work together. Rebar helps keep cracks tight. Control joints encourage the slab to crack in planned locations. One does not replace the other.
For a typical driveway, saw cuts or tooled joints should be installed in a sensible pattern that creates panels close to square. Long, narrow panels are more likely to crack unpredictably. Joints should line up with inside corners, changes in slab width, and other locations where stress concentrates. Re-entrant corners are notorious crack starters, so plan them before placement.
Joint depth matters too. A control joint generally needs to be cut to about one-quarter of the slab thickness. On a 4-inch slab, that means roughly a 1-inch cut. Make the cuts on time. Waiting too long can allow random shrinkage cracks to show up before the saw ever touches the slab.
Use expansion material where the driveway meets a garage slab, foundation, existing concrete, or another fixed structure that needs separation. Dowels may be needed where the design calls for load transfer between slabs, but they are a separate detail from the rebar grid. Do not treat dowels, tie bars, and reinforcing steel as interchangeable materials.
Rebar vs. Wire Mesh for Driveways
Welded wire reinforcement can be used in some driveway slabs, but it has one recurring jobsite problem: it gets stepped on and ends up at the bottom. When that happens, it is not doing the work it was intended to do.
A tied rebar grid is easier to hold at the right elevation with supports, especially on larger pours or jobs with active concrete crews. It also gives you clearer bar sizing and spacing. That is why many contractors prefer rebar for driveways with heavier traffic, thicker slabs, or soil concerns.
Fiber reinforcement can also be added to the mix design for shrinkage-crack control, but it does not automatically replace steel reinforcement. Some projects use fibers, some use rebar, and some use both. The right choice comes back to the slab design and expected service conditions.
A Practical Driveway Reinforcement Checklist
Before you schedule concrete, verify these job details:
- Confirm slab thickness based on actual vehicle traffic, not just what was used on the last house.
- Check that the subgrade is shaped, drained, and compacted uniformly.
- Choose #3 or #4 rebar based on the slab design, loads, and soil conditions.
- Set bar spacing, lap lengths, edge cover, and supports before placement starts.
- Lay out control joints and expansion joints before the crew begins finishing.
- Review any engineered drawings, municipal requirements, or builder specifications first.
Rebar Concrete Products can supply the rebar, supports, tie wire, expansion material, poly, dowels, and jobsite items needed to keep a driveway pour moving. For larger or unusual slabs, bring in the dimensions and expected traffic so the material package matches the work.
Before the concrete truck is on the road, walk the grade one more time. A properly supported #3 or #4 grid is valuable, but the best driveway starts with a firm base, the right thickness, and a crew that has the joint plan ready before the first chute swings.
