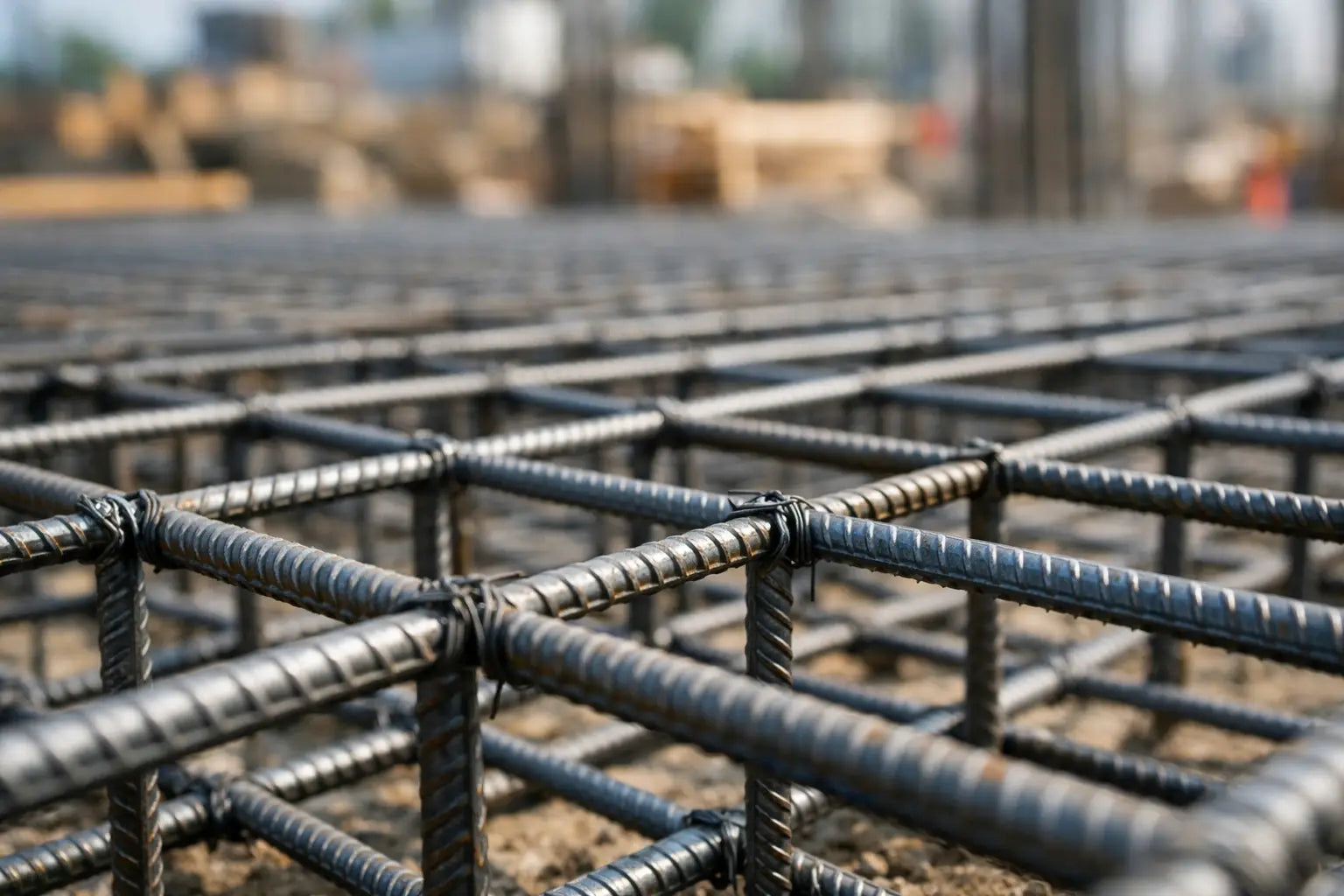

What Is Bar Spacing in Concrete Reinforcement?

September 04, 2026

A slab crew can have the right bar size, the right grade, and plenty of steel on site, then still miss the reinforcement requirement by laying the bars too far apart. What is bar spacing? It is the specified distance between reinforcing bars in a concrete assembly. On most plans, that distance is measured center to center unless the drawing or specification says otherwise.

Bar spacing is not a layout suggestion. It controls how steel is distributed through the concrete, how cracks are managed, how loads are carried, and whether there is enough room for concrete to flow and consolidate around the reinforcement. For contractors, getting it right starts with reading the callout correctly and keeping the mat in position through the pour.

What Is Bar Spacing and Why Does It Matter?

Bar spacing tells the crew where each reinforcing bar belongs relative to the next one. A plan may call for #4 bars at 18 inches on center each way in a slab, #5 bars at 12 inches on center in a footing, or vertical and horizontal bars at different spacings in a wall. The size of the bar and the spacing work together. You cannot substitute one for the other without approval from the engineer of record.

Closer spacing places more steel across a given width. That can increase the reinforcement area, improve crack distribution, and provide capacity where the design requires it. Wider spacing uses fewer bars, which may be appropriate in a lightly loaded area but can leave a slab, wall, or footing short on steel if the plans call for more.

Spacing also affects the concrete work. Bars packed too tightly can block aggregate, create voids, and make consolidation difficult. Bars spread too far apart may not control cracking or perform as designed. The right spacing is the spacing shown in the approved structural documents, installed with the required cover and supported so it stays there.

How Rebar Spacing Is Measured

Most rebar spacing is given on center, often written as O.C. or o.c. This means the measurement runs from the centerline of one bar to the centerline of the next bar, not from the outside edge of one bar to the outside edge of the next.

For example, #4 bars at 12 inches O.C. means every bar centerline is 12 inches from the next bar centerline. The clear open space between those bars is less than 12 inches because the diameter of the bar takes up part of that distance.

On-center spacing versus clear spacing

This difference matters when a detail references minimum clear spacing. Clear spacing is the open distance between the surfaces of adjacent bars. It is used to make sure concrete and aggregate can pass between the steel and properly surround it.

If a drawing says #5 bars at 12 inches O.C., the installer lays them out on 12-inch centers. If a specification requires a minimum clear spacing, that requirement must also be met. A congested beam cage, column, or heavily reinforced wall can satisfy an on-center layout in one direction while still creating a placement problem at laps, hooks, intersections, or bundled bars.

Do not guess based on what "looks about right." Pull a tape, establish your first bar correctly, and check the layout as the mat goes down. A small error repeated across a wide slab can turn into an extra bar, a missing bar, or a bad edge condition.

How to Read Common Bar Spacing Callouts

Reinforcement drawings use short notes because the plans have a lot to communicate in limited space. The basic callout usually identifies bar size, spacing, direction, and sometimes length or location.

A note reading #4 @ 16 inches O.C. E.W. means #4 rebar at 16 inches on center each way. In a slab, that normally creates a perpendicular grid, with bars running in both directions. The bars may be in the same mat or shown as top and bottom reinforcement depending on the detail.

A note reading #5 @ 12 inches O.C. VERT. calls for #5 bars spaced 12 inches on center vertically, typically in a wall. A separate horizontal callout may appear nearby. In walls and grade beams, do not assume both directions use the same size or spacing. They often do not.

Other notes may use terms such as continuous, typical, top, bottom, each face, or additional bars. These terms matter. "Typical" applies where the drawing indicates it applies, not automatically across every condition. Additional bars at openings, corners, reentrant corners, concentrated loads, and footing steps are common. Placement drawings and structural details control when they are provided.

Bar Spacing Changes by Concrete Element

There is no one standard spacing that works for every job. A residential driveway, commercial slab, retaining wall, pier cap, and structural footing all have different load paths and reinforcement requirements.

Slabs on grade

Slab reinforcement is often shown as a uniform grid, but the layout can change at thickened edges, turn-downs, columns, sawcut locations, openings, and load-bearing walls. The plan may call for one spacing in the field and tighter spacing in strip footings or equipment pads. Keep the steel at the elevation shown with chairs, dobies, or other approved supports. A properly spaced mat sitting on the subgrade is still not in the right location.

Footings and grade beams

Footing steel may include longitudinal bars plus cross bars, stirrups, or ties. Spacing becomes especially important where bars lap, where footing widths change, and where vertical dowels rise into a wall or column. Maintain the required concrete cover at the sides and bottom while holding the specified bar centers.

Walls, columns, and beams

Vertical wall bars, horizontal wall bars, beam stirrups, and column ties all have location-specific spacing requirements. Stirrups and ties may be closer near supports, ends, or connection zones and farther apart in the middle. Those changes are intentional. Do not run one spacing all the way through because it is faster to fabricate or tie.

A Practical Layout Method for the Crew

Start with the current structural plans, not an old print or a field memory from the last pour. Confirm the bar mark, size, spacing, lap locations, cover, and special details before material is cut or placed. If the job has placement drawings, use them with the structural drawings and resolve any conflict before installation.

For a rectangular slab mat, establish the first bar at the required edge distance or cover line. Then mark the on-center interval across the form or use a measured layout line. Check where the final bar lands. The edge distance may need to follow a specific detail, and adding or deleting a bar just to make the layout look even can change the design.

Keep bars tied sufficiently to hold position, especially where crews will walk the mat or where pump hose and concrete traffic can move steel. Supports should be spaced for the bar size, job conditions, and expected traffic. The goal is not simply to get the inspection passed before the truck arrives. The goal is to keep the reinforcement at the specified spacing and elevation until the concrete is placed.

Common Bar Spacing Mistakes That Cost Time

The most common issue is measuring to the wrong point. Crews may measure clear distance when the plans call for on-center spacing, or measure on center when a detail calls for clear spacing. That mistake compounds quickly.

Another issue is ignoring bar diameter when space is tight. Larger bars take up more room. A layout that worked with #4 bar may not maintain clear spacing, cover, or room for aggregate when changed to #6 bar. Material substitutions should never be made in the field without the required approval.

Lap splices can also create congestion. Where bars overlap, the steel is not just occupying one layer anymore. Check splice lengths, stagger requirements, clearances, and any detail that limits where laps can occur. The same goes for corners, dowels, embeds, sleeves, and blockouts.

Finally, do not confuse nominal spacing with installed spacing after the mat is disturbed. A grid can be laid out correctly and then pulled out of line by foot traffic, equipment, or a rushed pour. A quick pre-pour check with a tape measure can prevent an inspection delay and a difficult repair conversation.

Getting the Steel Package Right Before Delivery

Accurate bar spacing starts in estimating and carries through fabrication, takeoff, and delivery. When the plans are complete, a rebar supplier can help identify quantities, bar lengths, bends, stirrups, rings, corner bars, dowels, tie wire, and supports needed to build the specified assembly. That saves crews from piecing together a reinforcement package after steel is already on site.

For North Texas contractors, Rebar Concrete Products can support the job with reinforcing material, custom fabrication, takeoffs, placement drawings, and local delivery on qualifying orders. Bring in the current plans early, verify the spacing and details, and have the right steel ready before the forms are stripped, the crew is waiting, or the pour is on the schedule.
