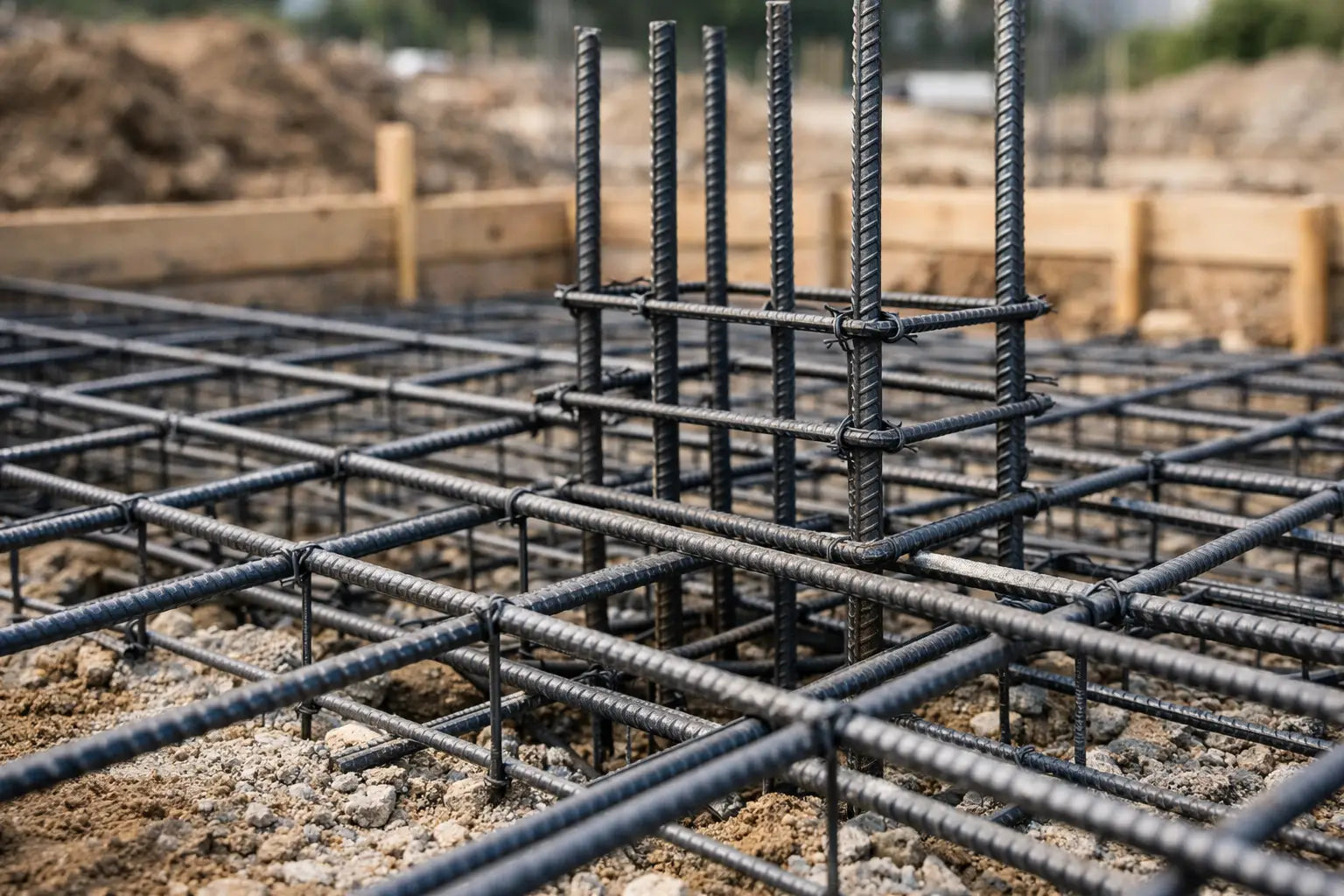

Foundation Rebar Layout Basics That Matter
A footing crew can lose half a day fixing steel that looked fine on paper but missed spacing, cover, or splice requirements in the field. That is why foundation rebar layout basics matter long before the concrete truck shows up. If the layout is off, you are not just dealing with a cleanup issue - you are dealing with inspection delays, wasted labor, and a foundation that may not perform the way it was designed.
What foundation rebar layout basics actually cover
At the jobsite level, layout basics come down to a few core questions. What bar size is required, where does each bar go, how far apart should they be, what clear cover is needed, and where do laps, hooks, dowels, and corners land? Those are simple questions, but getting them right depends on reading the plans correctly and translating them into a buildable layout in dirt, forms, and chairs.
For most residential and light commercial work, the layout starts with the engineer's drawings and the footing or slab dimensions. From there, crews need to account for bottom steel, top steel where required, beam reinforcement, slab mat spacing, thickened edges, grade beams, and transitions at piers or walls. The steel has to match the design, but it also has to sit in the right position and stay there through the pour.
That last part gets overlooked. A clean layout on the ground means nothing if the bars shift, sink, or get stepped out of place before mud hits the forms.
Start with the plan, not the pile of steel
A lot of problems start when crews begin laying bars from memory or from what was done on the last job. That works until it does not. Foundation details change from project to project based on soil conditions, loads, openings, wall locations, and engineering requirements.
Read the structural sheets first. Confirm footing widths and depths, slab thickness, beam dimensions, bar callouts, spacing, and any notes tied to laps or special conditions. Watch for details at corners, intersections, column pads, retaining sections, and step-downs. If there is a placement drawing or fabrication schedule, use it. It saves time and cuts down on field guesswork.
This is also where takeoff accuracy matters. If the steel package was built from complete plans and not rough assumptions, layout moves faster and waste stays lower.
Foundation rebar layout basics for footings and slabs
Most layouts in the field fall into two common buckets - continuous footings and slab reinforcement. The exact detail depends on the structure, but the workflow is similar.
For continuous footings, crews usually begin by locating the footing line and checking form dimensions. Once the footing width is confirmed, bars are set to the spacing shown on plan and held off the soil with the right supports. The main concern is keeping the steel centered where required and maintaining clear cover from the earth and forms. If the design calls for multiple longitudinal bars, the spacing between them matters just as much as the spacing across the footing.
For slab mats, the work is more grid-driven. Bars are typically laid one direction first, then crossed with the second direction at the required centers. Openings, beams, plumbing penetrations, and thickened sections all affect that grid. The basic rule is simple - do not let field convenience override the plan. If bars need to jog, stop, lap, or continue through a section, handle it exactly as detailed.
The layout also changes with slab-on-grade versus elevated structural work, but in both cases support is critical. Rebar belongs in the section where the engineer put it. If it ends up on the bottom when it was meant to be mid-depth or near the top, you did not install the design.
Cover, spacing, and support are not small details
Three things cause recurring failures in the field: not enough cover, uneven spacing, and poor support. Cover protects steel from exposure and corrosion and helps the concrete bond and perform properly. Spacing affects load distribution and crack control. Support keeps bars where they belong during placement and vibration.
If bars are too close to the soil, too tight against forms, or floating loose in the slab, the fix is usually expensive because it happens late. The right chairs, dobies, supports, and tie wire are not accessories. They are part of the installation.
Splices, laps, corners, and dowels
This is where a basic layout can go sideways fast. Straight runs are easy. Transitions are where mistakes show up.
Lap splices need the right length for the bar size and application. Crews should never guess a lap because "that looks about right" is not a structural standard. The plans or schedule should define lap requirements, and if they do not, the field should get clarification before installation. Short laps can fail inspection. Overly long laps waste steel and can create congestion.
Corners and intersections need the right fabricated pieces or the right bend details. Simply butting straight bars together at a corner is not the same as reinforcing a corner correctly. The same goes for grade beam intersections and wall-to-footing transitions.
Dowels matter just as much. If they are out of line, too short, or poorly tied, the next phase of work slows down. Masonry, walls, columns, and extensions all depend on those dowels landing where they are supposed to.
Where field conditions change the approach
North Texas jobs can bring shifting soils, stepped grades, and fast schedule changes. That means layouts often need to adapt around real site conditions without losing the engineering intent. A footing may step. A beam may deepen. A slab edge may thicken near an opening or load point.
This is where practical coordination helps. Some jobs need fabricated corner bars, stirrups, rings, or custom cut lengths to keep crews moving. Some can be handled from stock steel in the field. It depends on the complexity of the design, the schedule, and how much labor you want tied up cutting and bending on site.
Common layout mistakes that cost time
Most rework comes from the same handful of issues. Bars set at the wrong centers, missing steel at openings or corners, laps in the wrong location, support spacing too loose, and cover violations at forms or trenches. Another common one is using the right material in the wrong place - #4 where #5 was called for, or standard lengths where a fabricated piece should have been used.
There is also the coordination problem. Steel gets laid before all penetrations, embeds, or block-outs are fully nailed down, then the crew has to cut it back apart. That is not always avoidable, but it is usually reduced by getting all trades aligned before final tie-off.
Inspection issues are often predictable. If the bars are not tied securely, if the supports are sinking into mud, or if the placement does not match the plan notes, expect a delay. A little more time before the inspection usually saves a lot more time after it.
Why material supply affects layout quality
Good layout depends on more than a good crew. It also depends on getting the right steel, accessories, and fabricated parts on time. Missing chairs, shorted dowels, wrong bar lengths, or delayed stirrups can force field substitutions that create bigger problems later.
That is why contractors usually work better with a full-service supplier, not just a yard that loads steel. When you can get takeoffs, placement drawings, fabrication, core materials, and jobsite accessories from one source, the layout process gets tighter. Crews spend less time patching together missing items and more time installing what the plans call for.
For builders and concrete contractors working around McKinney and greater North Texas, that kind of support can make a real difference on schedule-driven work. Rebar Concrete Products handles rebar, fabricated pieces, accessories, and delivery with a straightforward focus on price and turnaround.
Getting the layout right before pour day
The best foundation layouts are not fancy. They are accurate, stable, and easy to inspect. The crew knows the plan, the steel matches the schedule, supports are in place, and transitions have been thought through before anyone starts tying random bars together.
If you are planning a footing, slab, grade beam, or full foundation package, treat layout as part of the build, not a box to check. Get the right takeoff. Get the right fabricated pieces. Get enough supports, tie wire, dowels, and accessories to finish the job correctly the first time.
Concrete does not wait on rework. A clean rebar layout gives you a better shot at passing inspection, staying on schedule, and pouring with confidence.
