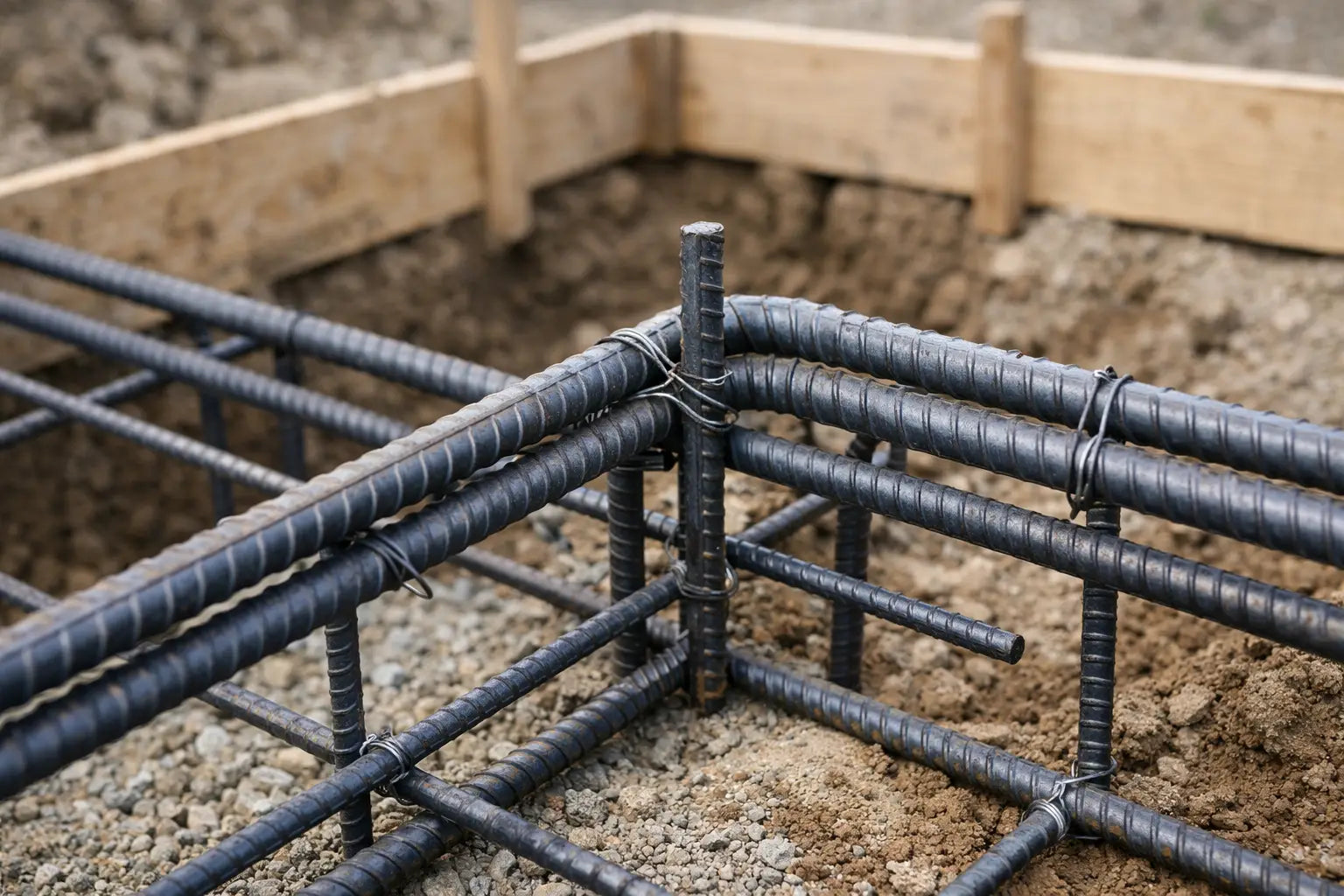

Foundation Corner Bar Example for Footing Steel
A footing corner is where a straight-run rebar layout can go wrong fast. Two bars that simply meet at 90 degrees may look acceptable from above, but they do not provide the continuous steel path the corner needs. This foundation corner bar example shows what crews, foremen, and purchasers need to check before concrete shows up: bar shape, leg length, lap location, cover, and the fabrication details that keep the pour moving.
Corner bars are not decorative bends in a rebar package. They are fabricated pieces used to carry reinforcement around a change in direction. Whether the work is a house footing, grade beam, retaining wall footing, or commercial foundation, the bar schedule and structural drawings control. The field goal is simple: install the specified steel continuously, maintain cover, and avoid making a critical corner up as you go.
What a Foundation Corner Bar Does
A standard corner bar is commonly an L-shaped fabricated rebar piece. One leg runs with the longitudinal steel in one footing direction, and the other leg turns the corner and runs with the steel in the intersecting direction. The bent bar ties both runs together so the reinforcing layout follows the foundation line instead of stopping at the corner.
For a typical outside footing corner, the L-bar is placed so each leg overlaps the straight longitudinal bars shown on the plans. The required overlap is the lap splice length. It is not a universal number. Lap length changes with bar size, concrete strength, steel grade, coating, confinement, hook details, and the engineer's design requirements. Do not assume a short overlap is acceptable because the bars are tied tight.
Inside corners, stepped footings, wall intersections, and grade-beam layouts can require different fabricated shapes. Some details use L-bars. Others use U-bars, hooked bars, hairpins, or separate top and bottom corner reinforcement. The drawing tells you which shape belongs there. The fabricator needs that information before bending anything.
Foundation Corner Bar Example: A Typical Layout
Here is a practical example for understanding the layout, not a replacement for an engineered detail. Assume a continuous perimeter footing has two #4 longitudinal bars near the bottom of the footing. At a 90-degree outside corner, the plans call for matching #4 L-shaped corner bars at the same elevation.
The corner bar has one leg extending down each footing run. Each leg laps the matching straight #4 bar for the length called out in the plans. The L-bar stays inside the required concrete cover from the footing sides and bottom. It is tied to the longitudinal bars so it cannot roll, lift, or get shoved out of position when the crew places concrete.
If the detail calls for two longitudinal bars, it may also call for two corner bars - one to continue each bar line. The exact arrangement depends on the placement drawing. In some cases, one corner bar is set low and another higher to match separate reinforcement layers. Do not stack bars directly on top of one another if that violates required spacing or cover.
A simple way to read the example is this: the straight bars carry reinforcement along each wall line, while the corner bar carries that reinforcement through the turn. The bend belongs at the actual corner. The legs belong in the adjacent footing runs. The splice areas need enough length to develop the bar as designed.
What the Fabricator Needs
A usable corner-bar order needs more than “make some Ls.” Give the supplier the bar size, bend dimensions, quantity, and drawing reference. If there are multiple corner conditions, identify each one clearly. A clean fabrication request usually includes these four items:
- Bar size and material requirement, such as #4 or #5 rebar
- Inside or outside bend dimensions for each leg
- Quantity of each bar mark or shape
- Placement drawing, structural detail, or a clear marked-up sketch
Check the Corner Before You Tie It Off
The fastest way to catch a bad corner is before the concrete pump, not after the inspection fails. Start by verifying that the corner bar matches the bar mark and size on the plans. A #3 L-bar and a #4 L-bar can look close when they are lying in a bundle, but they are not interchangeable.
Next, check direction. An L-bar can be flipped or rotated into the wrong orientation, especially when crews are working repeated corners from a stack of fabricated pieces. At an outside corner, the bar should follow the intended reinforcing path while staying within the footing cage. At an inside corner, the detail may place the bend and extensions differently. Match the drawing, not a nearby corner that happens to look similar.
Then look at lap locations. Keep laps where the plans allow them and make sure the corner bar has the specified overlap with the straight bar. A bar that comes up short at one leg is not fixed by stretching the tie wire or adding a small cutoff. Call it out and replace it with the correct piece.
Cover is the other field check that gets overlooked when the cage is crowded. Footing steel needs clearance from earth, forms, and concrete surfaces as specified. Use proper rebar supports or chairs to hold the cage at elevation. Rebar laying directly on dirt will not stay at the required height, and it can shift when the crew walks the footing.
Common Mistakes That Cost Time
The most common problem is treating a corner like two straight runs. Butt-ending straight bars at the corner does not create the same continuous reinforcement as the specified bent bar. Another mistake is guessing leg lengths in the field. That can leave inadequate development length or put the splice where it was not designed to be.
Crews also lose time when corner bars arrive without labels or are mixed with stirrups, dowels, and other fabricated steel. Keep bundles identified by bar mark and stage the correct pieces near the right footing run. For larger jobs, placement drawings make this much easier because the crew can see where every fabricated shape belongs before unloading the whole package.
Do not field-bend rebar unless the engineer and project requirements allow it. Bending a bar around a piece of lumber, bucket, or equipment attachment can damage the bar, change the bend geometry, and create a detail nobody approved. If a corner changes in the field, send the revised dimensions for fabrication or get direction from the design team.
Ordering Corner Bars Without Delaying the Pour
Corner bars are a small percentage of a footing package, but missing them can stop the entire inspection. Order them with the full reinforcement package whenever possible. That gives the supplier a chance to review quantities, fabricate to the correct marks, and coordinate delivery with your rebar, tie wire, supports, dowels, and other concrete materials.
For residential work, a marked foundation plan with footing widths, bar sizes, and corner details is usually enough to get started. Commercial packages may include structural sheets, a bar list, placement drawings, and addenda. Send the current set. An old plan revision is one of the easiest ways to get the wrong steel fabricated.
Ask for clearly tagged fabricated pieces, especially when the job has more than one footing depth, several bar sizes, or both inside and outside corner conditions. If you need a takeoff or placement help, address it before fabrication begins. Once bars are bent, changes cost time and money.
Rebar Concrete Products supplies fabricated corner bars along with the straight rebar and jobsite materials needed to build out a footing package. For North Texas crews, getting the fabricated steel and support items coordinated in one order means fewer supplier stops and fewer missing pieces on pour day.
The Detail on the Plan Wins
A foundation corner bar is straightforward once the detail is clear, but it is not a place for rule-of-thumb fabrication. Bar size, bend shape, lap length, spacing, cover, and placement all work together. The engineer's drawings govern every one of them.
Before the truck is scheduled, compare the corner-bar count against the actual foundation layout, confirm the latest plans are in hand, and make sure the crew knows which bundle goes where. That short check keeps the steel inspection clean and lets the concrete crew focus on the work they came to do.
