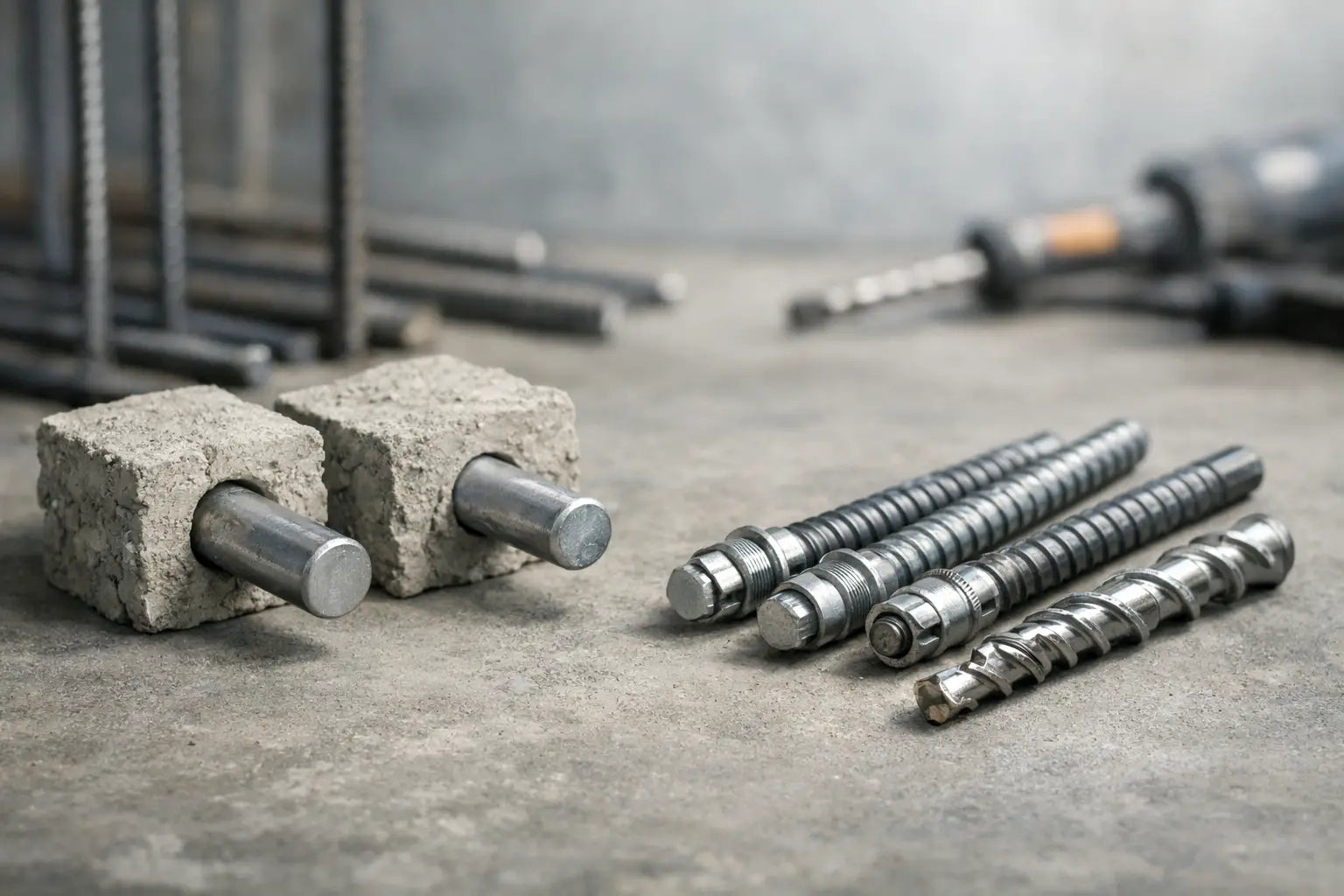

Formed Dowels vs Drill-In Dowels
If you are weighing formed dowels vs drill-in dowels, the real question is not which one is better on paper. It is which one fits the pour sequence, joint detail, load transfer requirement, and schedule on your job. Pick the wrong approach and you can lose time, fight alignment issues, or end up with a connection that does not match the slab design.
For contractors, this decision usually comes down to field conditions. New slab against future slab, day one layout, access to existing concrete, inspection requirements, and how much tolerance the detail gives you all matter. There is no one-size-fits-all answer, but there is a right answer for the way your project is being built.
Formed dowels vs drill-in dowels: the basic difference
Formed dowels are installed as part of the original pour setup. They are placed at the form line before concrete is placed so the dowel is already positioned where the next slab, paving section, or tied-in pour will connect. In most cases, this is the cleaner way to build when the joint location is known in advance and the sequence is planned correctly.
Drill-in dowels are added after concrete has already cured. Instead of setting the steel through the formwork before the pour, the crew drills holes into existing concrete and installs dowels with adhesive or grout, depending on the engineer's detail and project requirements. This method is common when tying a new slab into an existing section, when phasing changes in the field, or when the original pour did not include formed dowels.
That difference sounds simple, but it affects labor, accuracy, inspection, and production speed in a big way.
Where formed dowels make more sense
Formed dowels usually win when the pour sequence is straightforward and the future connection is already on the drawings. If you know where the joint is going, have room to set forms properly, and can keep the dowels aligned during placement, formed installation is often faster and more efficient.
The biggest advantage is built-in planning. The dowels are there when the first side is poured. That cuts out later drilling, cleaning, adhesive installation, and cure time for anchoring material. On a busy schedule, removing those extra steps can save real labor and keep the next phase moving.
Formed dowels also help with repeatable spacing when you are working from a standard detail. For paving, sidewalks, approach slabs, and certain slab-on-grade applications, crews often prefer to set the steel once and move on. If the forms are solid and the placement is checked before the pour, you can get a clean setup with less post-pour work.
But formed dowels are not foolproof. They have to stay in the right position during the pour. If they shift, sag, or get bumped out of alignment, the next placement becomes harder. Misaligned dowels can create headaches fast, especially when the second slab has tight tolerances. That is why formed installations depend on good setup and jobsite discipline, not just the detail on the print.
When drill-in dowels are the better call
Drill-in dowels are often the practical answer when you are tying into existing concrete. If the original slab, wall, curb, or footing is already in place, formed dowels are off the table. You are drilling and setting steel.
They also make sense when project phasing changes after the first pour. Maybe the extension was not in the original scope. Maybe the field dimensions changed. Maybe a repair turned into a replacement. Drill-in dowels give crews flexibility when the work has to adapt to what is already built.
Another advantage is correction. If the original pour was missed or dowels were not set where needed, drill-in installation can fix the issue without tearing out good concrete. That does not mean it is always cheap or quick, but it can be the most direct path to getting the connection built right.
The trade-off is labor and procedure. Hole diameter, embedment depth, edge distance, hole cleaning, adhesive type, and cure time all matter. If any part of that sequence is sloppy, performance can suffer. A drill-in dowel is only as good as the installation behind it.
Load transfer, restraint, and movement
A lot of confusion around formed dowels vs drill-in dowels comes from treating every dowel like it does the same job. It does not. Some details are about load transfer across a joint. Some are about tying two placements together. Some need movement on one side. Some do not.
For slab and paving work, smooth dowels are often used to transfer load while still allowing horizontal movement as the concrete shrinks and expands. In those cases, alignment matters a lot. If the dowel binds because it is out of line or the sleeve detail is wrong, the joint cannot move the way it should.
For structural tie-ins, the concern may be development length and bond into existing concrete. That is a different discussion. A drill-in dowel installed with approved adhesive into sound concrete may be exactly what the engineer wants for that condition. But it has to match the design, not just what is easiest for the crew that day.
That is why the right choice depends on the application. Sidewalk expansion, slab extension, curb tie-in, approach paving, and footing extension can all look similar from ten feet away but require different dowel details.
What affects field performance most
On formed dowels, the biggest field issue is alignment. If the steel is not level, straight, and set at the right spacing, the next pour can become a fight. Weak formwork, poor bracing, or careless placement around the dowels can knock them out of line before the concrete ever sets.
On drill-in dowels, the weak points are usually hole prep and installation control. Crews need the right drill bit, the right depth, the right cleaning method, and the right anchoring material. Dust left in the hole, wrong embedment, or rushed adhesive cure can all create problems that do not show up until later.
Concrete condition matters too. Existing concrete has to be sound enough to receive the dowel. If you are drilling near a damaged edge, cracked section, or weak patch, that affects holding power and may force a different repair detail.
Inspection can also swing the decision. Some jobs are fine with a standard formed setup checked before the pour. Others want strict documentation on post-installed anchoring, adhesive type, and installation procedure. If the job has tighter compliance requirements, make sure the selected dowel method matches what can actually be executed and signed off in the field.
Cost is not just material cost
A lot of buyers ask which option is cheaper. The honest answer is that material price alone does not tell you much.
Formed dowels can be less expensive overall when the work is planned from the start. You save drilling labor, reduce post-pour steps, and keep the sequence moving. That matters on production work where time is money and the crew has enough visibility to install everything correctly before the first placement.
Drill-in dowels may look more expensive because of labor, adhesive, tooling, and installation time, but they can still be the cheaper option if they prevent demolition, rework, or schedule disruption. On retrofit work or phased construction, post-installed dowels are often the only realistic choice. In that case, the right comparison is not formed versus drill-in in theory. It is drill-in versus tearing out concrete and starting over.
That is how contractors should price it - by total installed cost, schedule impact, and risk.
How to choose between formed dowels and drill-in dowels
Start with the condition you are building. If this is a future connection that is known now and the forms can be set correctly, formed dowels are usually the cleaner path. If you are tying into existing concrete or dealing with a late field change, drill-in dowels are usually the practical path.
Then check the detail. Is the joint designed for load transfer with movement, or for a bonded structural connection? Are there specific spacing, embedment, sleeve, or adhesive requirements? That answer should come from the plans and engineer, not guesswork.
After that, think about execution. Which method can your crew install accurately on this site, under this schedule, with the concrete condition you actually have? A simpler method installed right beats a supposedly better method installed poorly.
For contractors in North Texas, speed matters, but so does getting the right material package on site the first time. That means matching dowels, rebar, expansion, supports, and accessories to the actual sequence of work. Rebar Concrete Products works with crews that need that kind of practical support every day - fast turnaround, straight answers, and materials ready for the job in front of them.
The smart move is not chasing a default answer. It is picking the dowel method that fits the detail, the schedule, and the field conditions before small mistakes turn into expensive concrete work later.
