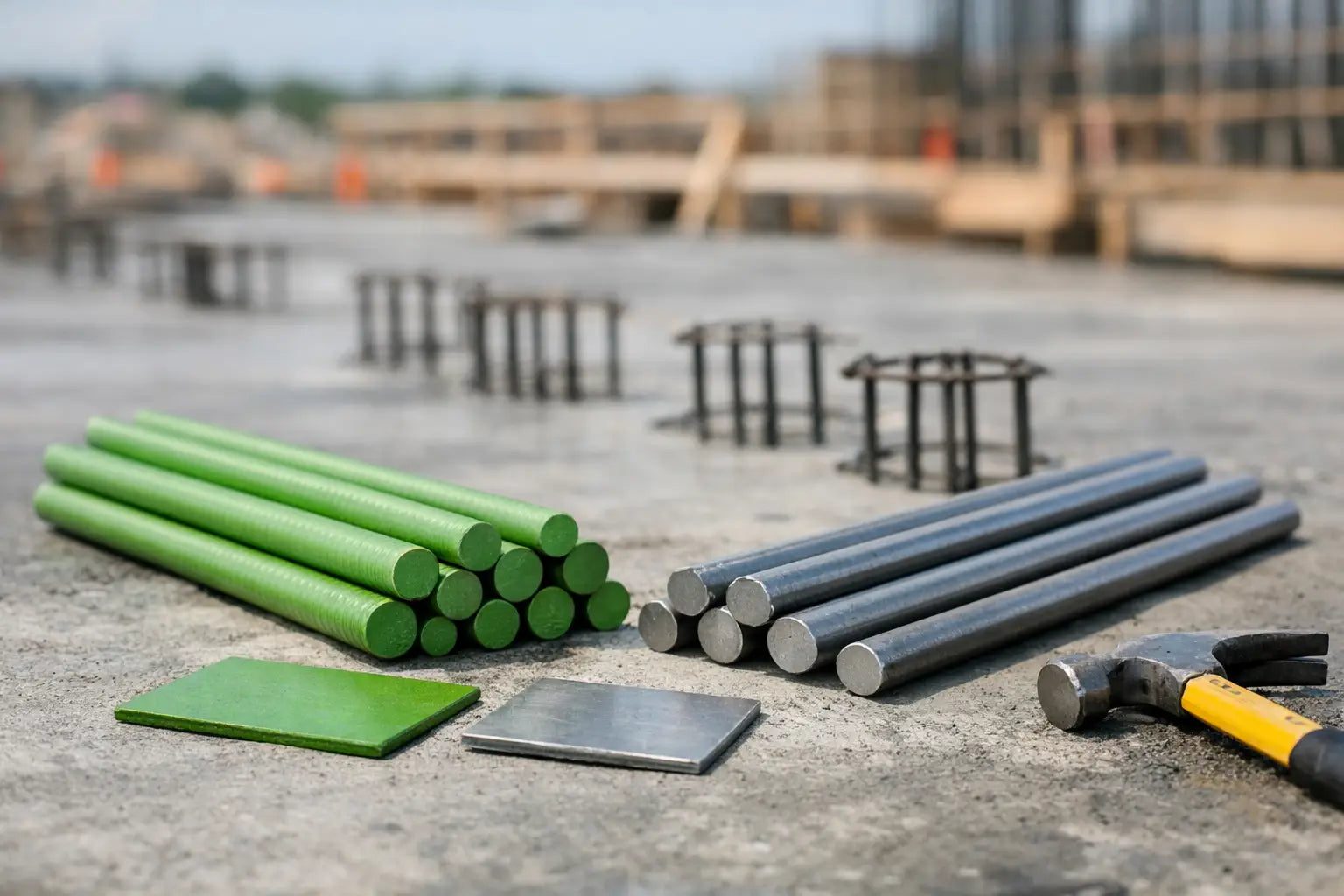

Choosing the Right Dowels for Concrete Slabs
A slab can look good on pour day and still become a problem at the joints months later. The right dowels for concrete slabs help adjacent panels carry wheel loads together while still allowing the concrete to expand and contract. The wrong bar, wrong spacing, or poor alignment can lead to faulting, joint spalls, and costly repairs that no crew wants to revisit.
For contractors, the goal is simple: install the specified load-transfer system correctly, keep the joint moving as designed, and have material on site when the pour is ready. That starts with knowing what dowels do, what they do not do, and where they fit in the slab package.
What Dowels Do in a Concrete Slab
Dowels are smooth steel bars installed across a joint, most often a transverse contraction joint in pavement or heavy-duty slab work. Their job is load transfer. When a truck tire, forklift, or other concentrated load rolls near a joint, the dowel helps share that load with the slab on the other side.
Without effective load transfer, one slab panel can deflect more than the next. Over time, that movement can create a vertical difference at the joint, commonly called faulting. Joint edges take repeated abuse, corners break down, and ride quality gets worse. In industrial floors, truck lanes, parking areas, loading zones, and pavement, those failures can turn into real maintenance costs.
A dowel is not meant to lock both slabs together. One end must be able to slip as the concrete moves with temperature and moisture changes. That is why dowels are typically smooth rather than deformed. Smooth steel allows movement. Deformed reinforcing bar grips concrete and resists movement.
That distinction matters on every order: deformed bars used across a joint as tie bars are not a substitute for properly detailed dowels.
Dowels vs. Tie Bars: Do Not Mix Them Up
Dowels and tie bars may both cross joints, but they solve different problems.
Dowels transfer vertical loads across a joint while permitting horizontal movement. They are generally used at transverse joints where slabs need to move independently in the direction of the joint opening and closing.
Tie bars are deformed reinforcing bars used to hold adjacent lanes or panels together, commonly at longitudinal construction joints. They help keep the joint from separating, but they are not designed to allow the same movement as a dowel. Installing tie bars where dowels are required can restrain the slab and contribute to random cracking.
For a crew placing slabs, the field check is straightforward. If the detail calls for free movement across the joint, use smooth dowels with the specified debonding method, sleeve, or cap. If the detail calls for keeping two sections pulled together, it may call for tie bars. Follow the plans, not assumptions based on what was used on the last job.
Selecting Dowels for Concrete Slabs
Dowel selection depends on the slab design, loading, joint layout, and project specifications. There is no one-size-fits-all bar that belongs in every slab. A light-duty exterior flatwork pour does not have the same demands as a warehouse forklift aisle or a commercial paving project.
Diameter and Length
Dowel diameter and length affect how well the bar transfers load and how stresses are distributed in the surrounding concrete. Larger or more heavily loaded slabs may require larger-diameter dowels, longer embedment, or both. The design professional or project specification should control these decisions.
Do not reduce bar size because a smaller material is available that day. Saving a little on the wrong dowel can create a joint failure that costs far more than the original material order. Likewise, going bigger without checking the design is not automatically the answer. Proper embedment, spacing, and alignment all work together.
Spacing
Dowels are placed at regular intervals along the joint so loads are transferred across the full joint line. Spacing is especially important in wheel paths, high-traffic pavement, and areas where forklifts repeatedly cross the same joints.
The drawings should state the required spacing. Measure it in the field, and make sure the basket or assembly stays put during concrete placement. A dowel basket that gets kicked, bent, or shoved out of position can leave a crew with a slab that looks fine until traffic starts working the joint.
Material and Coating
Plain smooth steel dowels are common where corrosion exposure is limited and the project specification allows them. For projects exposed to moisture, deicing chemicals, or aggressive service conditions, specifications may call for epoxy-coated, galvanized, stainless steel, or other corrosion-resistant dowel systems.
Coating is not just an upgrade item. It is a durability decision. In the wrong environment, unprotected steel can corrode, expand, and damage concrete around the joint. But coating requirements, bond-breaker requirements, and approved materials vary by project. Match the supplied material to the plans and the engineer's requirements.
Alignment Is Where Good Material Can Still Go Bad
A correctly sized dowel installed out of alignment can restrain slab movement. That puts stress into the concrete instead of allowing the joint to open and close. The result can be joint distress, cracking, or a slab that does not perform the way the detail intended.
Dowels need to be parallel to the slab surface and parallel to the direction of expected movement. They also need to be centered at the joint and held at the specified elevation. That sounds basic, but it is easy to lose control of alignment when crews are moving fast, forms are shifted, or concrete is being placed aggressively.
Dowel baskets help maintain spacing and position before the pour. They are useful when they match the project detail and are set on a stable, properly prepared base. For some work, dowels may be installed by drilling into hardened concrete for slab additions, repairs, or phased placements. Drilled installation requires attention to hole diameter, depth, cleaning, adhesive requirements when specified, and bar projection. It is not a place to guess.
Inspect the setup before concrete arrives. Check the joint line, bar spacing, elevation, and whether sleeves or caps are facing the correct direction. That five-minute check is easier than explaining why a joint is binding after the slab is placed.
Sleeves, Caps, and Bond Breakers Matter
Because a dowel must permit movement, one end is commonly isolated from the concrete with a sleeve, cap, or approved bond-breaking system. The exact method depends on the design. Some systems use manufactured expansion caps that provide room for movement. Others use sleeves designed to prevent concrete from bonding to the dowel.
The key is to avoid accidental restraint. Concrete splashed into an open sleeve, a crushed cap, or a dowel installed with the wrong end treated can defeat the purpose of the system. Keep components clean and protected during placement.
Also pay attention to expansion joints and isolation joints. These are not automatically locations for standard dowel placement. Some assemblies use sleeved dowels or proprietary systems; others require complete separation. The joint detail controls. If the plans are unclear, get an answer before the pour, not after the joint has been cut.
Plan Dowels With the Full Slab Package
Dowels are only one part of a slab that performs under traffic. Base preparation, slab thickness, concrete mix, reinforcement, joint layout, curing, saw-cut timing, and edge support all affect the finished job. A quality dowel installation cannot overcome a soft base, poorly located joints, or missed curing.
That is why material takeoffs should be handled as a complete package. Review dowels alongside rebar, wire reinforcement if specified, chairs or supports, expansion material, poly, tie wire, stakes, and the tools needed to keep the crew moving. Ordering each item separately often creates the same jobsite headache: one missing component holds up the pour.
For North Texas contractors, Rebar Concrete Products can help line up reinforcement materials, fabricated steel, slab accessories, takeoff support, and delivery so the material side of the job is ready when the crew is. Bring the plans, joint details, and quantities needed. Clear information gets you the right material faster.
Common Dowel Problems to Avoid
Most dowel failures start with avoidable field mistakes rather than exotic engineering issues. Watch for these conditions before and during placement:
- Using deformed rebar where smooth dowels are specified.
- Installing bars with no sleeve, cap, or approved debonding method where movement is required.
- Letting baskets shift, sink, or twist before concrete sets.
- Placing dowels too high, too low, or at an angle to the joint.
- Substituting a different diameter, length, coating, or spacing without design approval.
- Ordering the bars but overlooking baskets, sleeves, caps, and other required accessories.
A good slab joint is not accidental. Get the dowels, accessories, and placement details settled before pour day, and your crew can focus on placing concrete instead of chasing missing material or fixing preventable problems.
