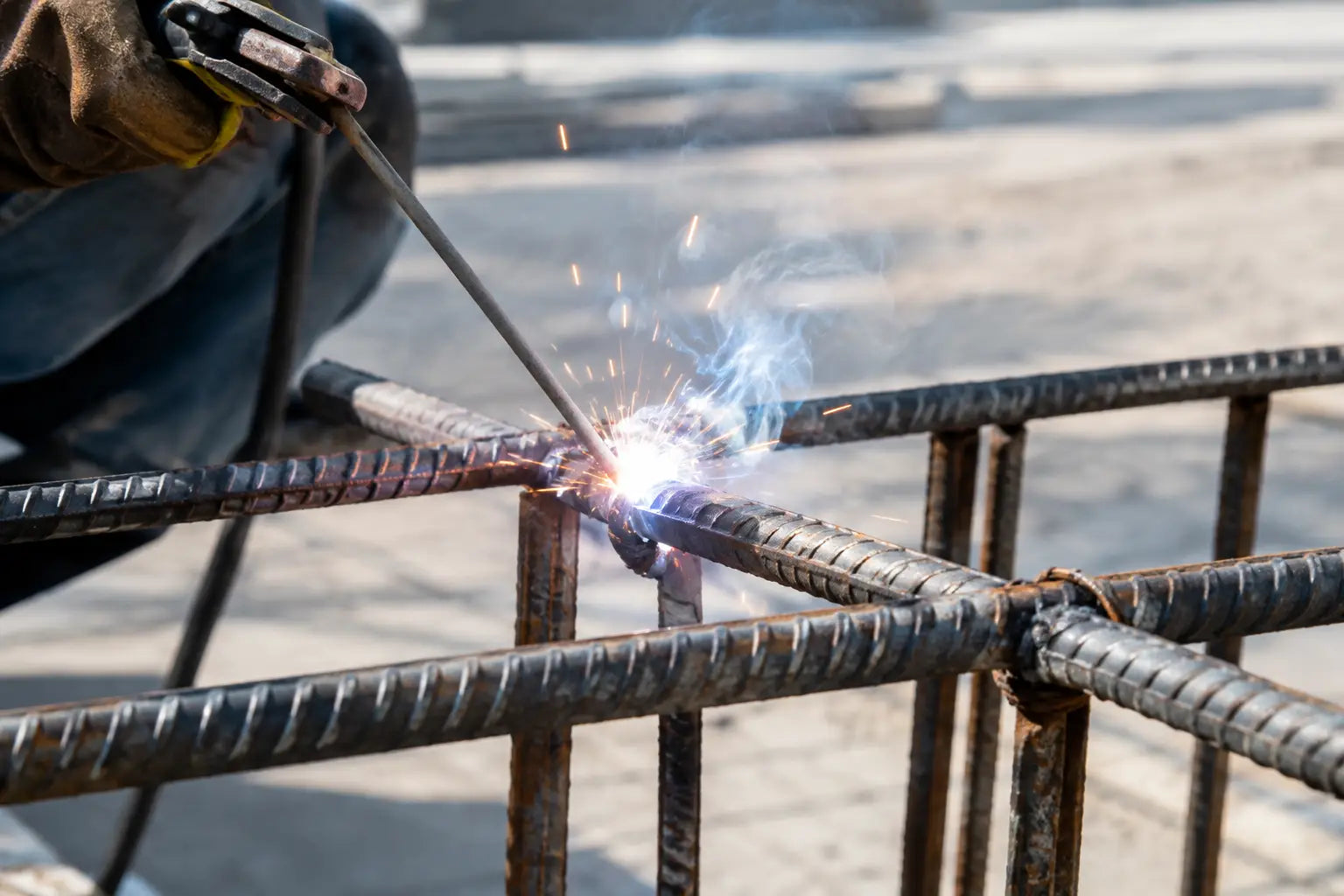

Can Rebar Be Welded? Rules for a Strong Repair

September 23, 2026

A crew is short one lap splice, a bar gets damaged during excavation, or a fabricated cage needs a last-minute adjustment. That is when the question comes up: can rebar be welded? Sometimes, yes. But welding reinforcing steel is not a jobsite shortcut you should make without checking the bar grade, the structural details, and the approved welding procedure.

A bad weld can reduce the strength and ductility of the bar, create a brittle connection, or put a project out of compliance. For structural concrete, the engineer of record and the project specifications control the decision. If welding is allowed, it needs to be done with the right material and procedure - not just a welder and a quick tack.

Can Rebar Be Welded Safely?

Rebar can be welded safely when the steel is suitable for welding and the work follows an approved procedure. The most weldable common reinforcing bar is ASTM A706, which is manufactured with controlled chemical properties intended to support welding. It is often specified where welded rebar cages, welded attachments, or field welding may be required.

ASTM A615 rebar is different. It is widely used for standard concrete reinforcement, but it is not automatically weldable just because it is rebar. Its chemistry can vary, and higher carbon content can make the heat-affected area around a weld hard and brittle. Welding A615 without confirming its chemical composition and using a qualified procedure can create a weak point where the bar needs to perform.

The practical rule is simple: do not assume a bar is weldable based on its size, appearance, or what has been done on another job. Check the mill test report, the bar markings, the plans, and the project specifications. When the drawings call for A706, supply A706. When the drawings show a mechanical splice or lap splice, do not substitute a weld in the field.

Start With the Structural Detail, Not the Welder

A weld changes the load path. That is why the first question is not whether the crew can weld the bar. The first question is whether the connection is designed to be welded.

Reinforcing steel is typically connected with lap splices, mechanical couplers, or approved welded splices. Each method has its own development length, spacing, confinement, and inspection requirements. A welded connection that looks solid may still fail to provide the force transfer the detail requires.

This matters most at columns, grade beams, retaining walls, elevated slabs, bridge work, and other structural elements where the reinforcement is carrying calculated loads. A field change in these areas should go through the engineer of record before work proceeds. Getting approval may take a phone call and a revised detail. Repairing a failed inspection, cutting out concrete, or explaining a structural issue later costs much more.

For nonstructural fixtures or temporary bracing, the risk can be different. Even then, do not weld directly onto bars that will remain in the finished reinforcement unless the design allows it. Temporary welds can leave notches, burn marks, and altered steel behind after the brace is removed.

Why Rebar Grade Makes the Difference

Heat from welding does more than join two pieces of steel. It changes the material next to the weld. That area can cool too fast, lose ductility, or develop cracking that is not obvious from the surface.

A706 bars are produced with chemistry limits that make their response to welding more predictable. A qualified welder can use a welding procedure developed for the bar size, grade, joint type, and job conditions. Depending on the procedure, that may include specified electrodes, preheat requirements, controlled heat input, and cleaning the bar before welding.

With A615 bars, weldability depends on the actual chemical analysis, including carbon equivalent. The engineer or welding professional may determine that welding is acceptable with specific controls, or they may reject it and require an alternate splice. There is no safe blanket answer for every A615 bar on every project.

Do not confuse high-strength rebar with weldable rebar. Grade 60, Grade 75, and other strength designations tell you about yield strength. They do not by themselves confirm whether the bar can be welded.

Read the Bar Markings and Paperwork

Bar markings identify the producing mill, bar size, steel type, and grade. They are useful in the field, but a mill test report provides the information needed to verify material properties and chemistry. Keep material documentation with the job files, especially when the engineer has specified weldable reinforcement.

If the bar has been sitting in a mixed bundle, is already cut into loose pieces, or cannot be positively identified, treat it as unverified material. The fast answer is not to weld it. Get replacement bars, use the specified coupler, or ask for direction from the engineer.

What an Approved Rebar Weld Requires

For structural reinforcing steel, welding should follow the applicable project requirements and an established reinforcing steel welding code, commonly AWS D1.4. That work is more controlled than ordinary shop welding.

A qualified welding procedure specification, often called a WPS, spells out how the weld is to be made. It addresses the joint configuration, filler metal, preheat, welding position, bar sizes, and other variables that affect performance. The welder must also be qualified for the procedure being used.

The bar must be clean where the weld will be made. Rust scale, concrete residue, mud, paint, oil, and moisture all interfere with weld quality. Bars should be properly aligned and supported so the joint is not forced into place with a weld. If the reinforcement is under stress, bent out of position, or contaminated from the site, solve those problems before welding begins.

Inspection is part of the work, not an optional extra. Depending on the project, the inspector may check fit-up, preheat, weld size, visible defects, and documentation. Critical welded splices may require additional testing. Plan for that inspection before concrete is placed over the work.

Tack Welding Is Not Always Harmless

A quick tack weld is one of the most common ways crews get into trouble. Tack welding can be used for certain prefabricated assemblies when it is permitted and properly controlled. But a tack is still a weld. It puts heat into the reinforcement and can affect the steel at that location.

Do not tack bars together to replace approved ties, chairs, or supports unless the fabrication detail calls for it. Tie wire and approved rebar supports exist for a reason: they hold the cage in position without changing the reinforcing steel. For many slab mats, footings, and wall cages, tying is the right method and welding is unnecessary.

Likewise, do not weld rebar to structural steel, embeds, forms, or equipment just to hold it in place unless the detail specifically shows that connection. Those attachments can create restraint, corrosion concerns, or unintended stress concentrations after the concrete hardens.

Better Options When a Bar Needs Repair

If a bar is cut short, misplaced, or damaged, welding may not be the best fix. The approved repair often involves adding a bar with the required lap length, using a listed mechanical coupler, replacing the affected bar, or revising the detail through the engineer.

Mechanical couplers are especially useful where lap length is limited, congestion is heavy, or staged construction makes a long lap impractical. They also avoid putting welding heat into the rebar. The right coupler still has to match the bar size, grade, and splice classification required by the plans.

For fabricated cages, rings, stirrups, corner bars, and custom bends, ordering the correct pieces up front is usually faster than cutting and repairing in the field. Accurate takeoffs, placement drawings, and fabrication schedules reduce the last-minute fixes that lead to questionable welds.

Keep the Job Moving Without Guessing

When a welding question comes up, stop before the pour, identify the bar, and check the drawings. Confirm whether the repair is structural, whether the steel is A706 or verified weldable material, and whether the engineer has approved the connection. Then use a qualified procedure and document the work.

Rebar Concrete Products can help contractors get the correct bar sizes, fabricated components, and reinforcement accessories on site so crews are not forced to improvise when the trucks are waiting. A clean fabrication package and dependable material supply are cheaper than a field repair every time.

If the detail is unclear, get the answer in writing before the concrete arrives. That is how you protect the pour, the schedule, and the work behind your name.
