What Rebar Cover Is Required?
If you're asking what rebar cover is required, you're usually already dealing with one of two problems - a plan note that seems vague, or an inspector who wants to know exactly how much concrete is between the steel and the outside face. Either way, cover is not a minor detail. It affects durability, inspection, placement, and whether that steel will hold up once the job is poured and in service.
Rebar cover is the minimum distance from the outside surface of the concrete to the nearest face of the reinforcing steel. That spacing protects the steel from moisture, chlorides, weather, soil contact, and fire exposure. It also gives the bar enough embedment inside sound concrete to perform the way the design expects.
What rebar cover is required on most jobs?
The short answer is that required cover depends on where the concrete is located and what it is exposed to. In normal field practice, the most common baseline numbers come from ACI 318 and project plans.
For cast-in-place concrete, crews commonly work from these standards:
- 3 inches where concrete is cast against and permanently exposed to earth
- 2 inches for bars in concrete exposed to earth or weather when the bar size is No. 6 through No. 18
- 1-1/2 inches for bars in concrete exposed to earth or weather when the bar size is No. 5 or smaller
- 1-1/2 inches for beams, columns, and similar members not exposed to weather or ground
- 3/4 inch for slabs, walls, and joists not exposed to weather or ground
Why cover matters more than it looks
A lot of field issues start when crews treat cover like a tolerance they can borrow from. That usually turns into steel sitting too low, too high, or too close to formwork. Once that happens, the concrete may still get placed, but performance drops.
Too little cover leaves the steel vulnerable. Moisture and air reach the rebar faster, rust starts sooner, and expansion from corrosion can crack and spall the concrete. On exterior slabs, retaining walls, paving, and foundation work, that is not a cosmetic problem. It shortens service life and can turn a solid pour into a repair job.
Too much cover is not automatically good either. If bars are pushed too deep into the section, they may no longer be where the design needs them to resist tension. In slabs and beams especially, bar location matters just as much as bar size. The right answer is not more concrete over the steel. The right answer is the specified cover with proper support.
What rebar cover is required by application?
The practical way to look at cover is by member type and exposure.
Footings and concrete cast against earth
This is where crews most often need the full 3 inches. If the footing is poured directly against excavated soil, the bottom and sides that bear against earth generally require that extra protection. Dirt is not a form. It is irregular, wet, and aggressive over time.
That means chairs, dobies, or other approved supports need to hold the steel up where it belongs before the truck arrives. If the mat drops into mud or gets stepped down during placement, you can lose cover fast.
Slabs on grade
Slab cover depends on exposure and what the plans call for. Interior slabs not exposed to weather or ground on the top face may use smaller cover dimensions, while slabs exposed to weather or slabs with reinforcement near the bottom against subgrade need closer attention.
On slab work, the real issue is usually support spacing and traffic during the pour. Wire mesh and rebar do not stay in position by luck. If the steel is supposed to be at mid-depth or upper third and ends up sitting on the poly, the cover is wrong and the reinforcement is not doing its job.
Walls
Foundation walls, retaining walls, and formed walls can have different cover requirements depending on whether a face is exposed to soil, weather, or interior conditions. An interior formed face may allow less cover than the earth side of the same wall.
This is where placement drawings help. A wall mat can get crowded quickly with verticals, horizontals, dowels, and laps. If the steel is packed too tight to maintain the specified cover at the face, that problem needs to be fixed before placement, not argued over later.
Beams and columns
Beams and columns not exposed to weather or earth often use 1-1/2 inches of cover. That sounds simple until stirrups, ties, longitudinal bars, and congestion all start fighting for space.
If fabrication is off or the cage is too large for the form, crews may be tempted to shift bars to make it fit. That can kill cover on one side while increasing it on another. When that happens, the issue is usually not field adjustment. It is fabrication accuracy and checking dimensions before the cage is in the air.
Bar size changes the answer
One reason crews get tripped up on cover is that exposure alone does not decide it. Bar size matters too. In weather-exposed concrete, larger bars typically need more cover than smaller bars.
For example, bars No. 6 and larger commonly require 2 inches where exposed to weather or earth, while No. 5 and smaller may only require 1-1/2 inches in similar exposure. That is why swapping bar sizes in the field is never a casual move. A change in size can affect spacing, cover, lap lengths, and inspection.
Supports make or break cover
You do not get proper cover by measuring once and hoping for the best. You get it by using the right supports and enough of them.

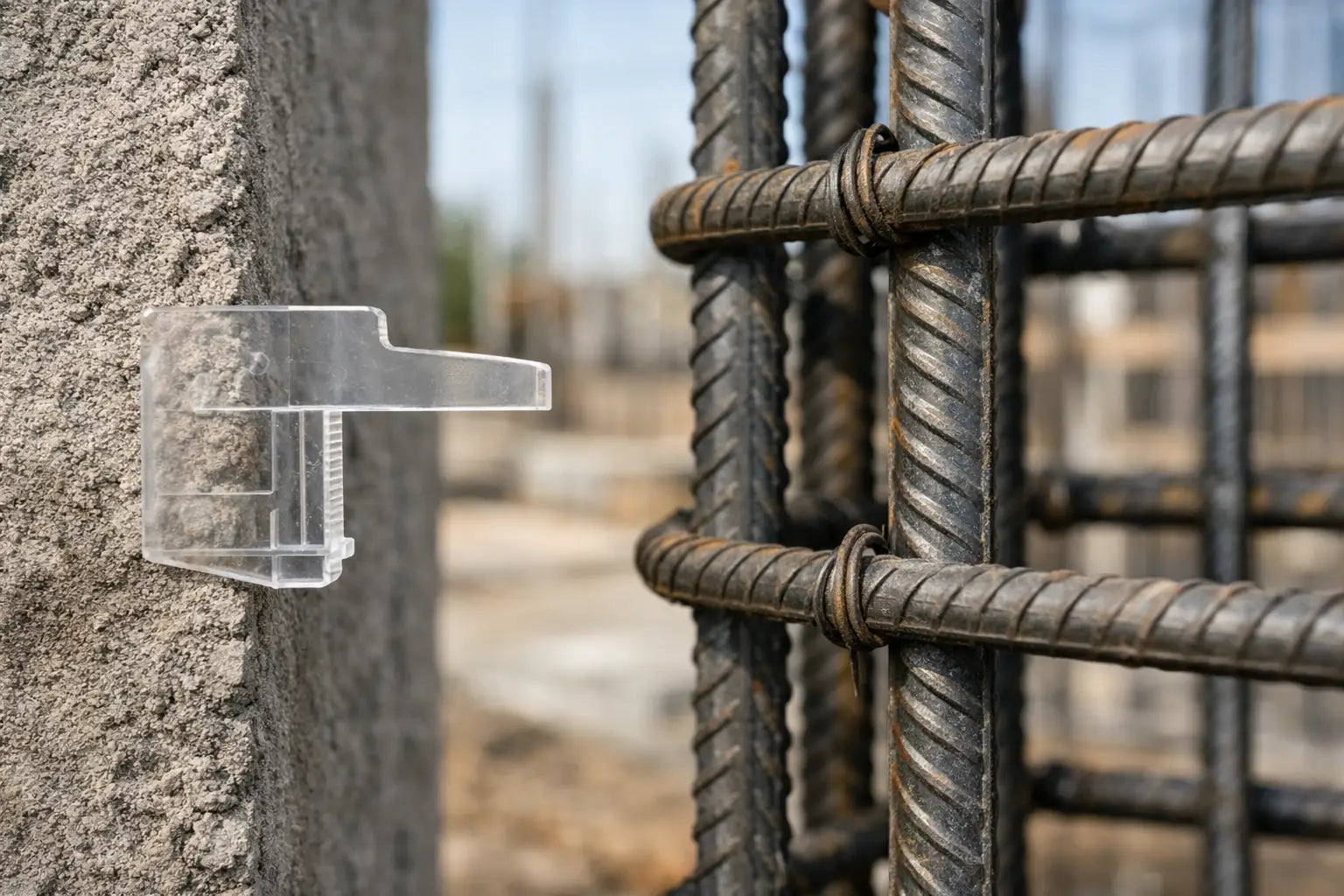

Dobies, chairs, bolsters, spacers, and side form supports all serve one job - holding the steel in position during placement. The support type matters because the wrong product can sink, tip, break, or create a bad bearing point. The spacing matters because too few supports let the steel sag between them.
This is especially true on large mats, heavy bar, and slab work with active foot traffic. The more movement you expect during the pour, the more intentional you need to be about support layout.
Common field mistakes that lead to failed cover
Most cover failures are not design problems. They are execution problems.
Steel gets dropped straight on grade with no support. Side cover disappears because cages are built too wide for the form. Bars get kicked during the pour and never reset. Excavation walls are rough, so a nominal 3-inch clearance becomes less than that at high spots. Sometimes the plans are clear, but the materials on site are not set up to meet them.
That is why practical prep matters. Confirm the member thickness, bar size, form dimensions, support height, and clearance at intersections before concrete placement starts. Fixing steel in advance is cheap. Fixing concrete after inspection trouble or early deterioration is not.
When the plans override the rule of thumb
Rule-of-thumb cover numbers are useful, but they do not outrank the stamped drawings. Engineers may call for increased cover in aggressive environments, water-retaining structures, site concrete exposed to deicing salts, or fire-rated assemblies. Some jobs also follow owner standards that are stricter than baseline code.
If there is a conflict between general field assumptions and the plans, follow the plans. If the plans are unclear, get clarification before fabrication and delivery. That saves rework and keeps the schedule moving.
Getting cover right starts before the pour
Cover is not something to figure out with a tape measure after the cage is tied. It starts with accurate takeoff, correct fabrication, the right bar supports, and enough material on site to hold the layout the way it was designed.
That is where a full-service supplier actually helps. When your rebar, stirrups, dowels, supports, poly, stakes, and accessories are coming together from one place, it is easier to keep the job clean and avoid last-minute substitutions that create spacing problems. For North Texas contractors, that matters on both residential foundations and commercial structural work where inspection timing is tight.
If you're laying out a job and need to know what rebar cover is required, use the code numbers as your starting point and the structural plans as the final word. Then make sure the steel is fabricated right and supported right. Good concrete work does not happen by accident, and neither does proper cover.
