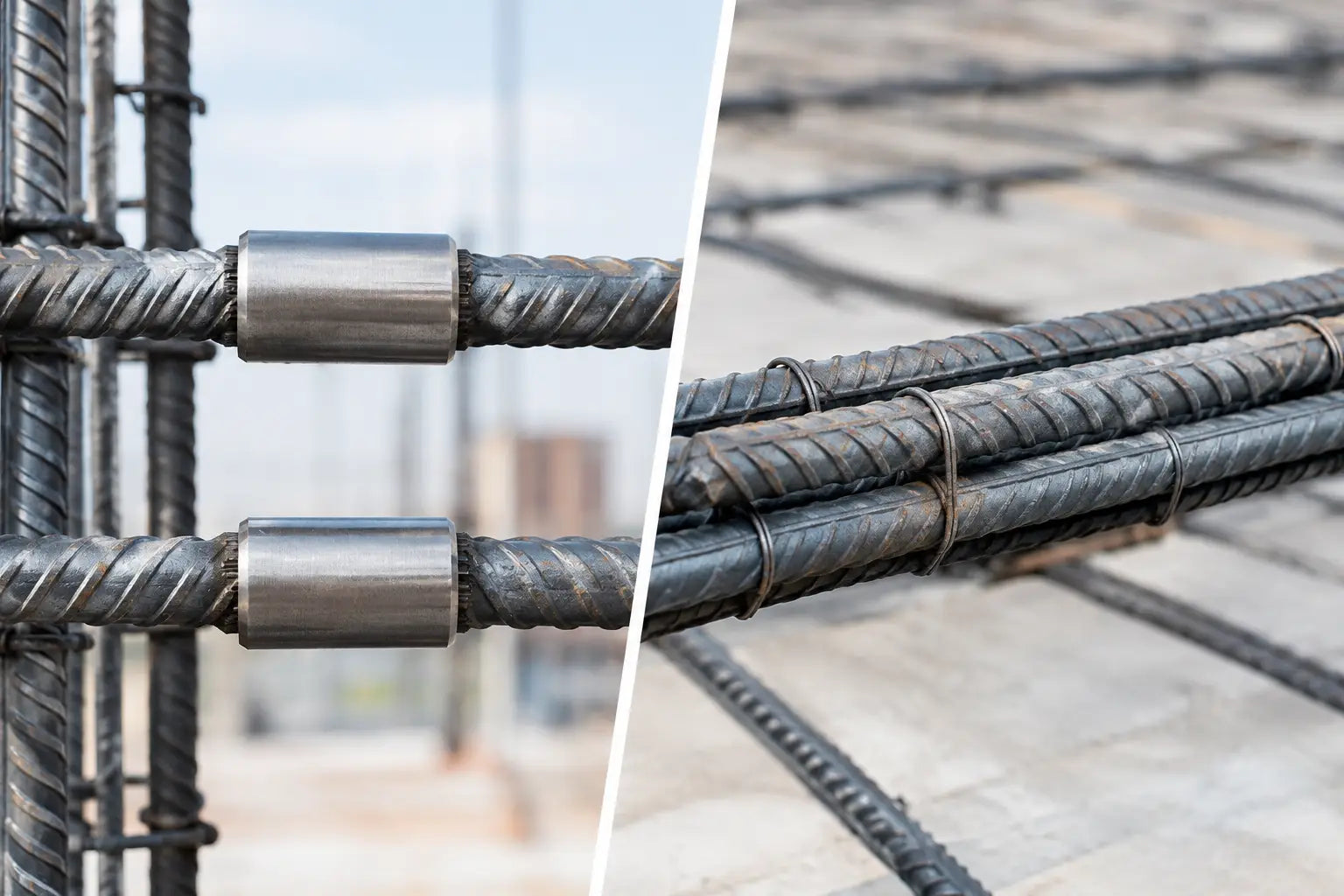

Rebar Couplers Versus Lap Splices Compared
A congested column cage is where the decision gets real. Rebar couplers versus lap splices is not just a material question - it affects bar placement, crew production, inspection, concrete flow, and whether the schedule holds when the job is moving fast.
Lap splices have been standard practice for a long time because they are familiar and straightforward. Mechanical couplers can reduce overlap length and clean up heavily reinforced areas, but they require the right bar preparation, approved product details, and coordination before steel hits the site. The best choice depends on the plans, bar sizes, splice locations, labor conditions, and the engineer's requirements.
Rebar Couplers Versus Lap Splices: The Basic Difference
A lap splice transfers force from one reinforcing bar to another through the bond between the rebar and surrounding concrete. The two bars overlap for a specified distance, then the crew ties them together as shown on the placement drawings. That overlap length is not a guess. It is based on design conditions, including bar size, concrete strength, coating, confinement, location, and whether the bar is in tension or compression.
A mechanical rebar coupler connects two bars directly with a manufactured device. Depending on the coupler system, the bars may be threaded, swaged, grouted, or secured with bolts. Most common systems for reinforcing steel create a mechanical connection intended to develop the required bar strength without relying on a long overlap inside the concrete.
Both methods can be valid when they are designed, specified, and installed correctly. The question is not which one is universally better. The question is which method solves the job's actual field problem at the best total cost.
When Lap Splices Make the Most Sense
For many residential foundations, light commercial work, grade beams, slabs, retaining walls, and ordinary reinforced concrete details, lap splices remain the practical choice. Standard bar sizes, open placement conditions, and repeatable footing or wall work generally favor simple overlaps and tie wire.
Lap splices are familiar to nearly every concrete crew. There is no special coupler installation process, no need to verify thread engagement, and no added connection hardware to track. If the placement drawing provides adequate room and the splice length does not create congestion, lapping can keep procurement and installation simple.
The material cost can also be favorable on smaller jobs. A lap splice uses additional rebar length rather than a manufactured connector. When bar lengths are manageable, freight is controlled, and the crew has room to work, that extra steel may cost less than supplying couplers and preparing the bar ends.
There are limits. Long lap lengths can consume a lot of steel on larger bars, especially where the design calls for tension development. They also make cages thicker. A cage that looks fine on paper can become difficult to tie, difficult to inspect, and difficult to place once several laps stack up in the same area.
Where Mechanical Couplers Earn Their Keep
Mechanical couplers are most useful when lap lengths create a real jobsite problem. High-rise work, structural columns, shear walls, bridge elements, heavily reinforced beams, precast connections, and tight equipment pads are common examples. In these areas, reducing the length and bulk of a splice can make reinforcement more buildable.
Couplers can help keep a bar cage from turning into a traffic jam. Less overlapping steel may improve access for tying, vibrator placement, and concrete consolidation. That matters when the design already includes dense vertical steel, multiple ties, embeds, dowels, or large bar sizes. Poor consolidation around crowded reinforcement can become a bigger problem than the price of the connection itself.
They can also support schedule planning. If a project is built in lifts or phases, couplers may allow starter bars to be terminated at a cleaner, more manageable elevation. Crews can make the next connection without wrestling long projecting bars through forms, decks, or restricted work areas.
For large-diameter bars, couplers can reduce the amount of extra rebar required for overlaps. That does not automatically make them cheaper, but it changes the math. On a large commercial package, reduced steel tonnage, less congestion, and faster installation can offset the cost of the coupler system.
Cost Is More Than the Price Per Connection
Comparing a coupler price to the price of extra rebar is only the starting point. Contractors need to look at installed cost.
With lap splices, account for added bar length, fabrication lengths, shipping weight, unloading, staging, tying time, and the space needed to place the lapped bars. If the job requires staggered splices, the crew also needs to follow the layout closely. A misplaced lap can mean rework before the pour.
With couplers, account for the connector, any special bar-end preparation, fabrication requirements, testing or documentation, installation labor, and inspection. Some systems require specific equipment or certified installation procedures. Those requirements are manageable when planned early. They become expensive when couplers are added after the steel has already been cut, bundled, and delivered.
The lowest-cost option is often the one that keeps the crew productive and avoids a placement problem. A low material number does not help if workers lose time forcing bars into a crowded cage or if concrete cannot be consolidated correctly.
Design and Code Requirements Come First
Do not substitute couplers for lap splices in the field because they appear to fit better. The structural drawings, specifications, and engineer of record control the splice method, location, and performance requirements.
Lap splice lengths vary by design. A crew should never use a rule-of-thumb overlap in place of the required detail. The same is true for mechanical connections. The coupler must be approved for the bar grade, size, and application, and it must meet the specified performance criteria.
Splice location matters as much as splice type. Engineers may restrict splices in areas of high stress, require staggered splices, limit the percentage of bars spliced at one section, or call for special confinement. In seismic work and other demanding structural applications, the detailing requirements can be especially specific.
Before fabrication starts, confirm the bar schedule, splice details, coupler type, and any required submittals. If there is a conflict between a field condition and the drawings, get direction before concrete day. Guessing at reinforcement is how small problems become inspection delays.
Fabrication and Delivery Planning Matter
A good splice decision starts during takeoff, not after the truck arrives. If laps are used, fabricated bar lengths need to include the proper overlap and account for hooks, bends, clear cover, and the sequence of installation. Long bars may be efficient structurally but hard to haul, unload, or maneuver around an active site.
If couplers are used, the fabrication shop needs the exact coupler system and bar-end requirements. Threaded systems, for example, need compatible threads and protection during shipping and handling. Connection locations should be easy for the crew to reach and should not interfere with formwork, embeds, sleeves, or adjacent reinforcement.
For North Texas contractors, fast turnaround is valuable, but correct information is what keeps fast turnaround from becoming a correction order. Rebar Concrete Products can help coordinate takeoffs, fabricated steel, placement drawings, and delivery so the package arriving on site matches the way the crew needs to build it.
Choosing the Right Method for the Job
Use lap splices when the drawings allow them, bar sizes are manageable, reinforcement is not overly congested, and the crew has room to work. They are proven, accessible, and often the right call for straightforward concrete work.
Use mechanical couplers when overlap lengths create congestion, large bars drive up added steel quantities, splice locations need to be compact, or phased construction calls for cleaner bar terminations. They are a planning tool as much as a connection method.
The best time to settle rebar couplers versus lap splices is before the rebar is fabricated. Bring the drawings, bar list, and field constraints into the conversation early. A clear splice plan means fewer surprises in the cage, a cleaner pour, and a crew that can keep moving.
